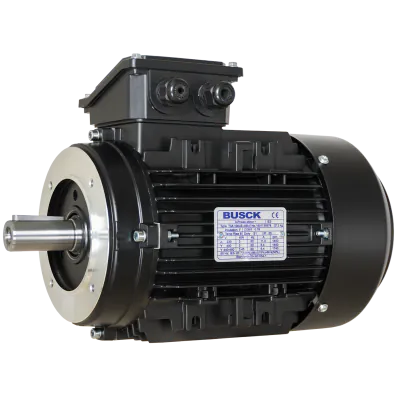

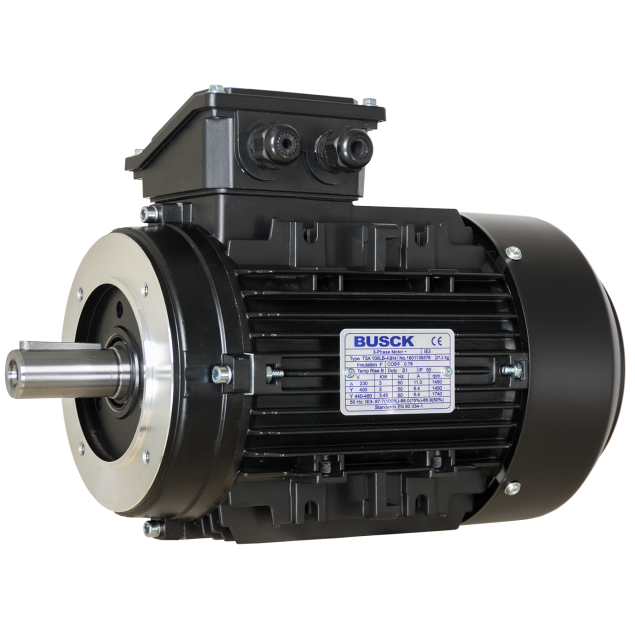

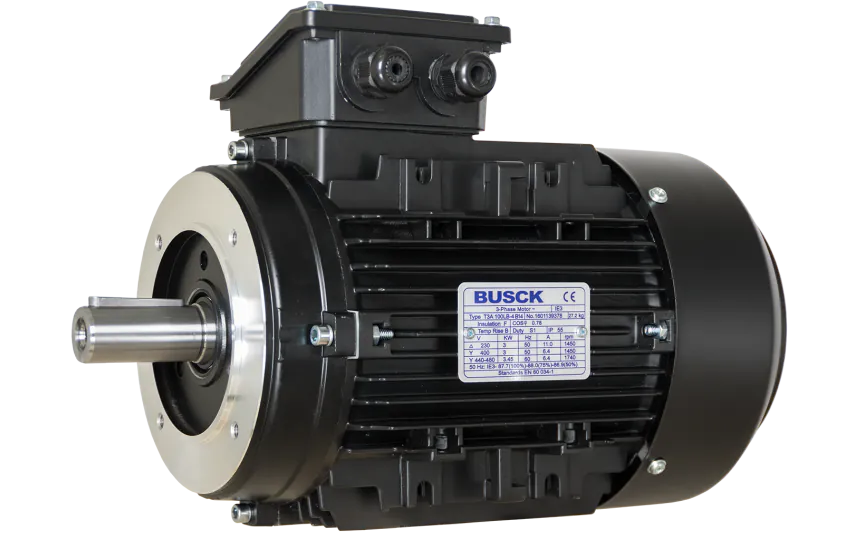

Busck AC motor T3A100LA-4, 2,2kW, 1450RPM, B14, 230/400, 50 Hz, Aluminium
T3A100LA-4Designed with a robust aluminium housing, this model supports B14 mounting and includes a shaft diameter of Ø28 mm. It’s built with TEFC (Totally Enclosed Fan Cooled) cooling for durability and has an IP55 ingress protection rating. The motor operates at 230/400 V and features a Bolt Circle Diameter (BCD) of 130 mm.
Specifications
Product description
Downloads
€730.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T3A100LA-4
Speed (RPM)
1450
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.77/4.47
Nominal torque (Nm)
14.49
Start current ratio (IA/IN)
7.9
Mounting
B14
BCD
130
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: The motor is IP55 rated, safeguarding it against dust and water ingress, enhancing its durability and ensuring consistent performance.
- High power output: With a power rating of 2.2kW, this motor delivers performance to tackle heavy-duty tasks efficiently.
- Efficient 1450RPM operation: The motor operates at a steady 1450RPM, striking balance between power output and energy efficiency.
- Wide voltage range: This motor supports both 230V and 400V power supplies.
- B14 flange mounting: The B14 flange mount simplifies installation, providing a secure attachment to your equipment.
- High energy efficiency IE3: The motor complies with IE3 energy efficiency standards, ensuring reduced energy consumption.
Specifications:
- Durable aluminum construction: The motor boasts a robust aluminum housing.
- Broad temperature range: -20°C to +40°C.
