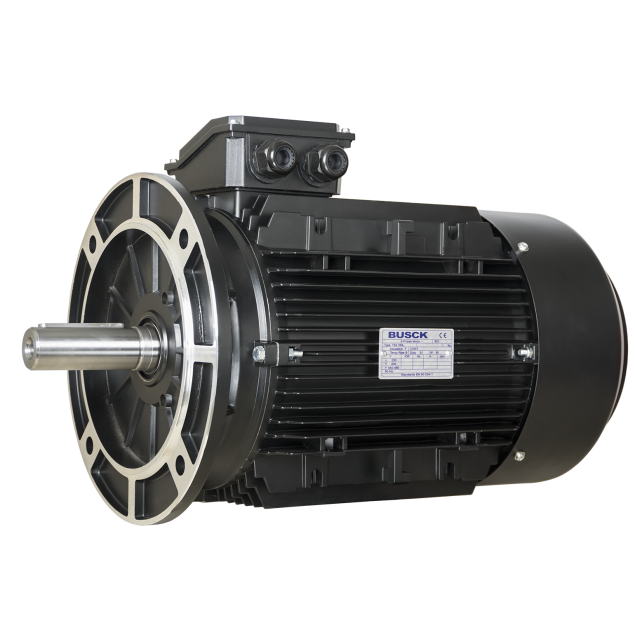

Busck AC motor T3A160L-2B5, 18,5kW, 2950RPM, B5, 400/690, 50 Hz, Aluminium

T3A160L-2B5

The Busck AC Motor T3A160L-2B5 is a robust electric motor engineered for industrial applications. It features a rated output of 18.5 kW and operates at a speed of 2950 RPM, supported by a 2-pole configuration. The motor is built according to the IEC 160 standard and utilizes TEFC (Totally Enclosed Fan Cooled) cooling for reliable thermal management. It comes with B5 flange mounting, a shaft diameter of Ø42 mm, and is constructed from durable aluminium. Designed for a voltage connection of 400/690 V, it meets the IE3 efficiency standard and has an IP55 protection rating, making it suitable for demanding environments. The Bolt Circle Diameter (BCD) is 300 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A160L-2B5

Speed (RPM)

2950

Rated output (kW)

18.5

Efficiency (% FL)

92.4

Voltage connection (Δ/Y)

400/690

Rated current at voltage

31.8/18.3

Nominal torque (Nm)

59.89

Start current ratio (IA/IN)

9.1

Mounting

BCD

300

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø42

Cooling

TEFC

HS-Code

85015230.000000

Description

Key features:

IP55 rating: Offers protection against dust and water ingress, enhancing the motor's longevity and reliability.
High power output: Boasts an power rating of 18.5kW, making it suitable for heavy-duty applications.
High-speed performance: The motor operates at a speed of 2950RPM, ensuring efficient and fast operation.
Wide voltage range: Compatible with 400/690V power supply, providing adaptability to different setups.
B5 flange: Designed with a B5 flange, allowing for easy and flexible mounting options.
High energy efficiency: With an IE3 energy efficiency rating, the motor ensures minimal energy wastage, reducing operating costs.
