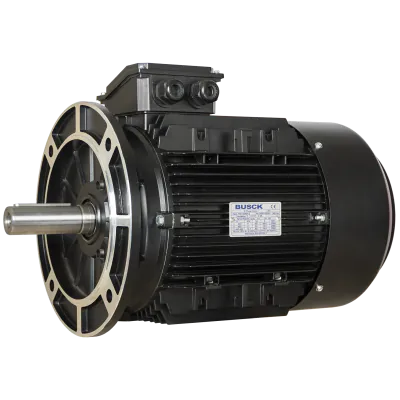

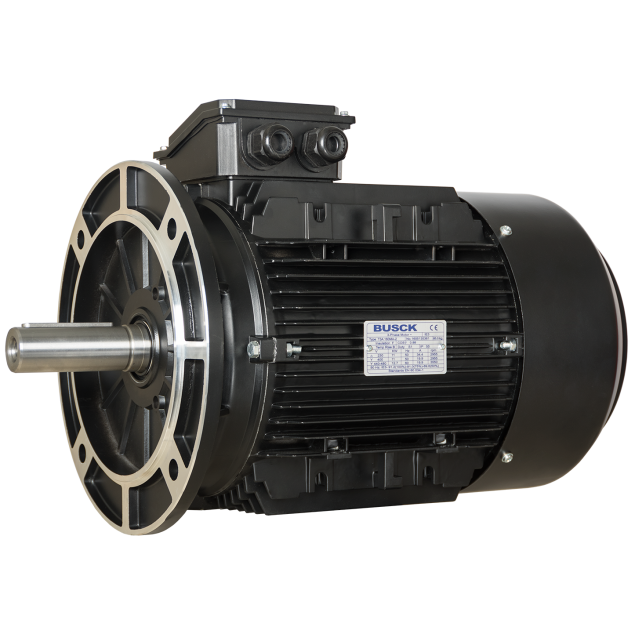

Busck AC motor T3A160MB-2B5, 15kW, 2960RPM, B5, 400/690, 50 Hz, Aluminium

T3A160MB-2B5

The Busck AC Motor T3A160MB-2B5 is a robust electric motor designed for industrial applications. It delivers a rated output of 15 kW and operates at a rated speed of 2800 RPM, with a maximum speed of 2960 RPM. Compliant with the IE3 efficiency standard and manufactured according to IEC frame size 160, it ensures energy-efficient performance. The motor features 2 poles and comes with a B5 mounting configuration. Constructed from aluminium, it includes TEFC cooling and offers a shaft diameter of Ø42 mm. Electrical connection is via 400/690 V, and it has an IP55 enclosure rating for protection in demanding environments. The bolt circle diameter (BCD) is 300 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A160MB-2B5

Speed (RPM)

2960

Rated output (kW)

Efficiency (% FL)

91.9

Voltage connection (Δ/Y)

400/690

Rated current at voltage

26.5/15.2

Nominal torque (Nm)

48.4

Start current ratio (IA/IN)

11.4

Mounting

BCD

300

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø42

Cooling

TEFC

HS-Code

85015230.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, enhancing its resilience in challenging environments.
Powerful performance: Delivering 15kW of power and operating at a speed of 2960RPM.
Wide voltage range: With a voltage range of 400/690V, this motor offers versatility and adaptability to various power supply configurations.
B5 flange mounting: The motor comes with a B5 flange, facilitating easy installation.
High energy efficiency: Rated at IE3, the Busck AC motor ensures minimal energy wastage, promoting energy conservation and cost-effectiveness.
