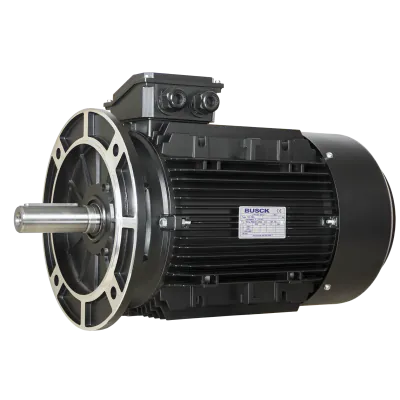

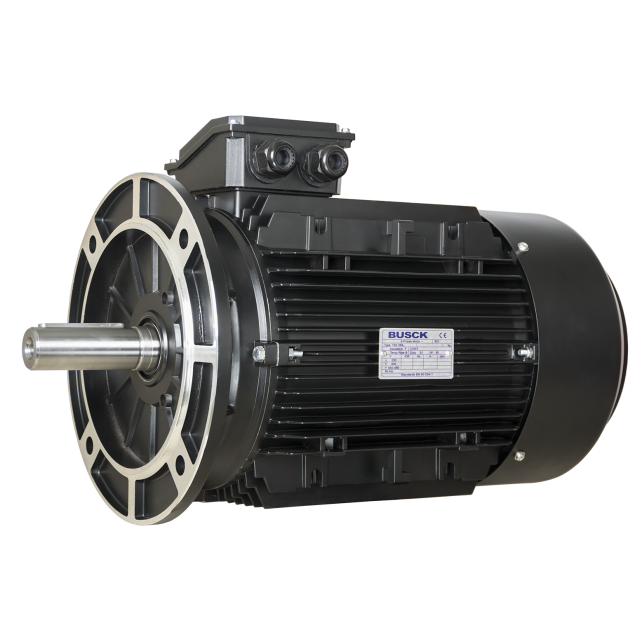

Busck AC motor T3A160L-4B5, 15kW, 1470RPM, 400/690V, 50Hz, aluminium
T3A160L-4B5The Busck AC motor is a three-phase synchronous motor designed to excel in demanding environments while delivering performance. Its robust construction and flexibility make it ideal for a wide range of applications.
Specifications
Product description
Downloads
€2,850.00
Made to order
Expected shipment: 10-04-2025
More Information
IP classification
IP 55
Model
T3A160L-4B5
Speed (RPM)
1470
Rated output (kW)
15
Efficiency (% FL)
92.1
Voltage connection (Δ/Y)
400/690
Rated current at voltage
27.7/15.9
Nominal torque (Nm)
97.45
Start current ratio (IA/IN)
9.2
Mounting
B5
IEC norm
160
BCD
300
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP55 rating: The motor is protected against dust and water ingress, allowing it to operate reliably in challenging conditions.
- High power output: With a power rating of 15kW, the Busck AC motor provides substantial power to handle demanding industrial tasks effectively.
- Efficient speed: The motor's 1470RPM speed ensures smooth and precise operation, contributing to enhanced productivity and reduced energy consumption.
- Voltage versatility: Designed to accommodate various power systems, the motor supports voltages of 400V or 690V, making it adaptable to diverse electrical setups.
- B5 flange mounting: The B5 flange design allows for easy and secure installation.
- High efficiency: The IE3 efficiency rating ensures optimal energy utilization.
Specifications:
- Aluminum build: The is made from a aluminum construction.
- Wide temperature range: -20°C to +40°C.
