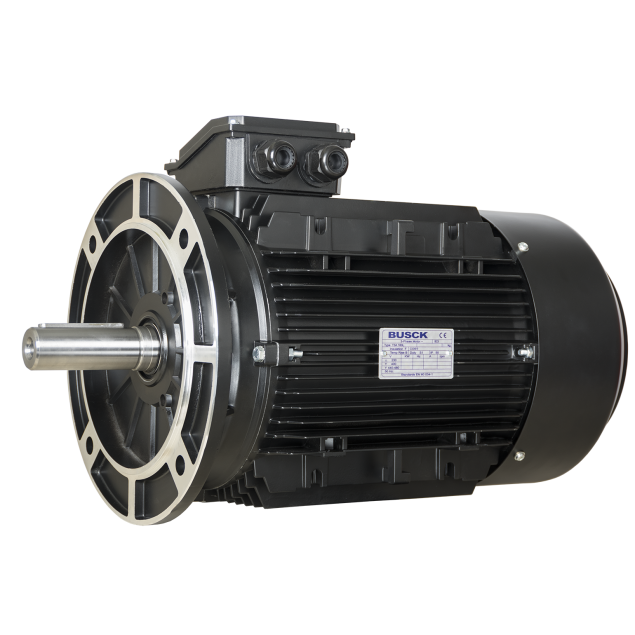

Busck AC motor T3A160L-6B5, 11kW, 975RPM, 400/690V, 50Hz, aluminium
T3A160L-6B5The Busck AC motor is a three-phase synchronous motor designed to excel under demanding conditions, offering performance and durability. Crafted with high-quality materials and engineering, this motor is tailored to meet the harsh demands of industrial applications.
Specifications
Product description
Downloads
€3,484.85
In stock
Expected shipment: 17-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A160L-6B5
Speed (RPM)
975
Rated output (kW)
11
Efficiency (% FL)
90.3
Voltage connection (Δ/Y)
400/690
Rated current at voltage
22.5/12.96
Nominal torque (Nm)
107.74
Start current ratio (IA/IN)
8.4
Mounting
B5
IEC norm
160
BCD
300
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP55 rating: Provides protection against dust and water ingress, ensuring reliable operation in harsh conditions.
- High power output: Boasting an impressive 11kW power capacity, making it suitable for a wide range of heavy-duty applications.
- Efficient performance: Operates at 975RPM.
- IE3 efficiency class: Compliant with IE3 efficiency standards, ensuring optimal energy usage.
- Wide voltage range: Compatible with 400V and 690V power sources.
- B5 flange: Equipped with a B5 flange for easy and secure mounting.
Specifications:
- Robust build: Constructed with aluminum.
- Temperature resilient: -20°C to +40°C.
