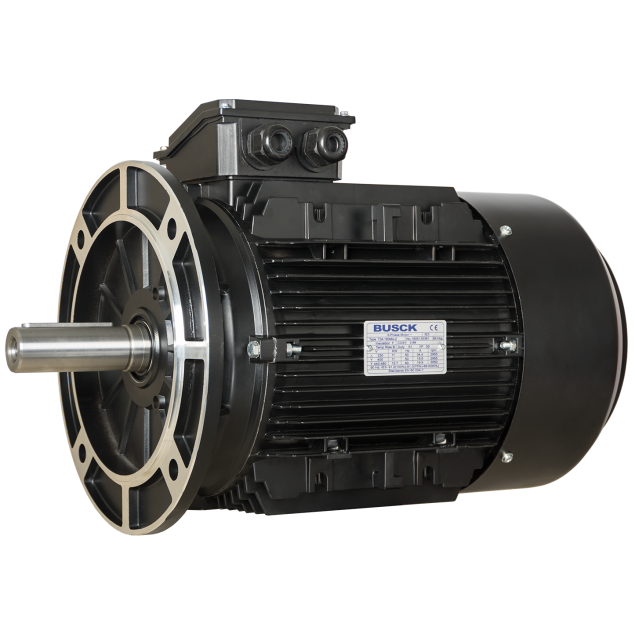

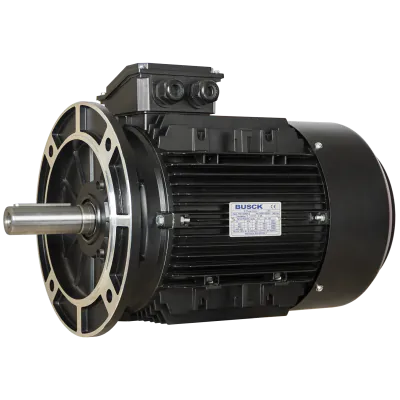

Busck AC motor T3A160M-4B5, 11kW, 1470RPM, 400/690V, 50Hz, aluminium
T3A160M-4B5The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to withstand the demanding industrial applications. Crafted with top-notch materials and precision engineering, this motor ensures reliable and efficient operation in harsh conditions.
Specifications
Product description
Downloads
€2,527.48
In stock
Expected shipment: 03-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A160M-4B5
Speed (RPM)
1470
Rated output (kW)
11
Efficiency (% FL)
91.4
Voltage connection (Δ/Y)
400/690
Rated current at voltage
20.9/12.02
Nominal torque (Nm)
71.46
Start current ratio (IA/IN)
7.6
Mounting
B5
IEC norm
160
BCD
300
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø42
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP55 rating: With an IP55 ingress protection rating, the motor is safeguarded against dust and water jets, making it suitable for various indoor and outdoor environments.
- 11kW power: The motor delivers a substantial power output of 11 kilowatts, ensuring high performance across a range of applications.
- 1470RPM speed: The motor's efficient 1470 revolutions per minute speed optimizes energy consumption and minimizes wear and tear.
- 400/690V voltage: Designed to accommodate both 400V and 690V power supply, providing versatility for different industrial settings.
- B5 flange mounting: The B5 flange mounting option simplifies installation and allows seamless integration into existing systems.
- IE3 efficiency: With an IE3 efficiency rating, the motor reduces energy consumption and operating costs.
Specifications:
- Aluminum build: The motor is made made from aluminum.
- Wide temperature range: -20°C to +40°C.
