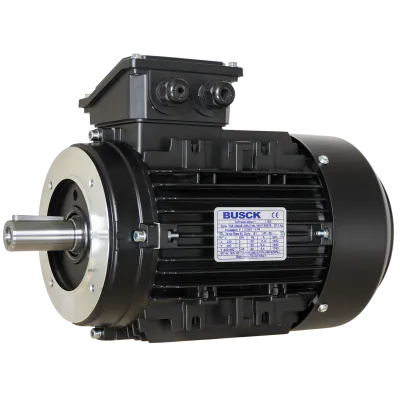

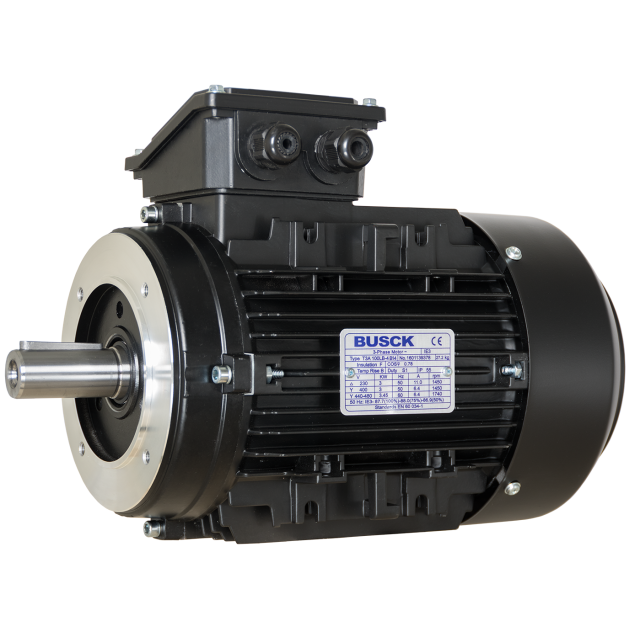

Busck AC motor T3A100L-6, 1,5kW, 955RPM, B14, 230/400, 50 Hz, Aluminium

T3A100L-6

This motor features a rated output of 1.5 kW and operates at a rated speed of 900 RPM with a nominal speed of 955 RPM. It complies with the IE3 efficiency standard and follows the IEC 100 norm. Designed with 6 poles, it uses TEFC cooling and an IP55 protection rating, making it suitable for demanding environments.Key specifications include a B14 mounting, shaft diameter of Ø28 mm, a voltage connection of 230/400 V, and a motor housing in aluminium. The Bolt Circle Diameter (BCD) is 130 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A100L-6

Speed (RPM)

955

Rated output (kW)

1.5

Efficiency (% FL)

82.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

6.43/3.7

Nominal torque (Nm)

Start current ratio (IA/IN)

5.5

Mounting

B14

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The IP55 rating guarantees protection against dust and water ingress, making it suitable for both indoor and outdoor use.
High power output: With a power rating of 1.5kW, the motor provides ample power to drive various industrial processes efficiently.
Optimal speed: The motor operates at a speed of 955RPM, offering precise control and smooth performance for different applications.
Energy-efficient: Rated at IE3, this motor meets stringent energy efficiency standards, reducing operational costs and environmental impact.

Specifications:
