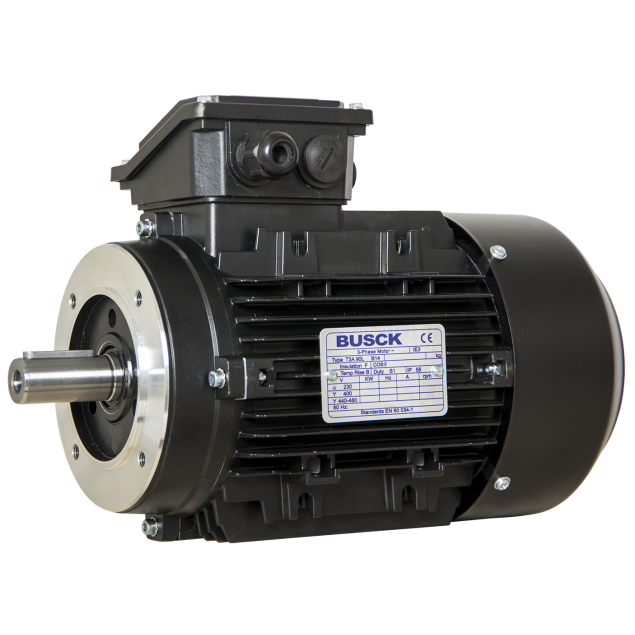

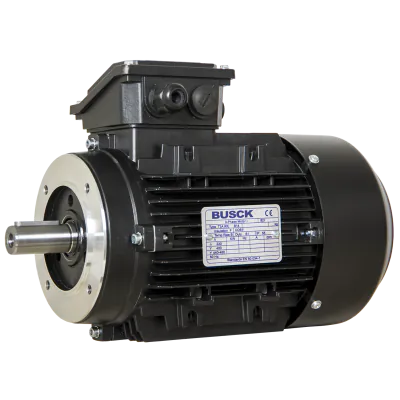

Busck AC motor T3A90LB-6, 1.5kW, 950RPM, 230/400V, 50Hz, aluminium
T3A90LB-6The Busck AC motor is a three-phase synchronous motor designed to excel under the demanding conditions. Crafted with precision and engineered for durability, this motor is your reliable solution for various industrial applications.
Specifications
Product description
Downloads
€616.49
In stock
Expected shipment: 03-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90LB-6
Speed (RPM)
950
Rated output (kW)
1.5
Efficiency (% FL)
82.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
6.82/3.92
Nominal torque (Nm)
15.08
Start current ratio (IA/IN)
5.6
Mounting
B14
IEC norm
90
BCD
115
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Rugged construction: Built to endure harsh environments and demanding applications, ensuring longevity and minimal downtime.
- IP55 rating: Dust and water-resistant design safeguards the motor from external elements, increasing its lifespan.
- High power output: Boasting a 1.5kW power rating, this motor delivers exceptional performance for a wide range of tasks.
- Efficient operation: Operating at 950RPM, it provides smooth and efficient performance, reducing energy consumption.
- IE3 efficiency: The motor meets high energy efficiency standards, resulting in reduced operating costs and environmental impact.
- Voltage flexibility: With 230/400V voltage compatibility, it adapts to various power supply configurations.
- B14 flange: Designed with a B14 flange for easy and secure mounting, ensuring hassle-free installation.
Specifications:
- Aluminum build: Sturdy aluminum construction.
- Temperature range: -20°C to +40°C.
