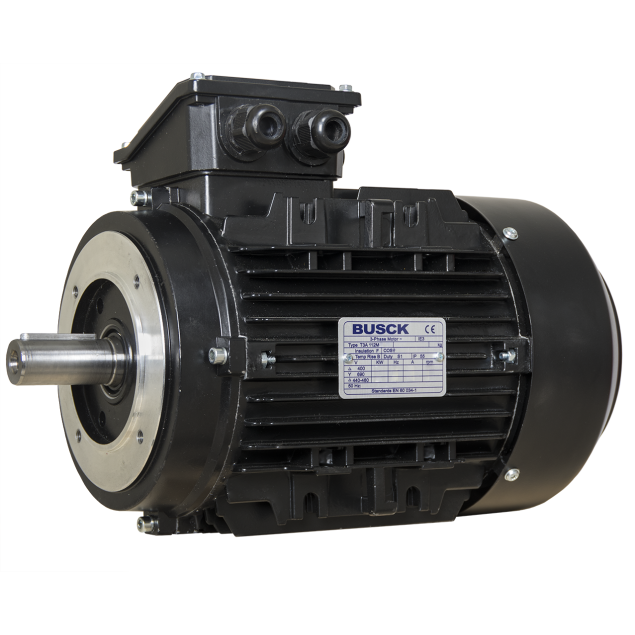

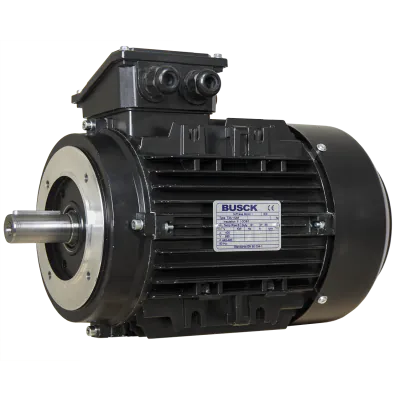

Busck AC motor T3A112M-8, 1.5kW, 715RPM, 230/400V, 50Hz, aluminium

T3A112M-8

The Busck AC motor is a powerful 3-phase asynchronous motor that suits a wide range of industrial tasks. It is built to be durable and ensures reliable performance even in tough conditions. With its solid construction and excellent performance, the Busck AC motor is a great choice for various types of machines and equipment.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 15-04-2025

More Information

IP classification

IP 55

Model

T3A112M-8

Speed (RPM)

715

Rated output (kW)

1.5

Efficiency (% FL)

79.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

7.27/4.18

Nominal torque (Nm)

20.03

Start current ratio (IA/IN)

Mounting

B14

IEC norm

112

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

Thermal protection

PTO

Description

Key features:

IP55 rating: With an IP55 rating, the motor is effectively protected against dust and water ingress.
High power output: The motor boasts a powerful 1.5kW output.
Optimal speed: Operating at 715RPM.
IE3 efficiency: Compliant with IE3 standards, this motor guarantees high energy efficiency.
Voltage flexibility: The motor can work with both 230V and 400V power supplies.
B14 flange: The B14 flange design simplifies installation and integration.

Specifications:
