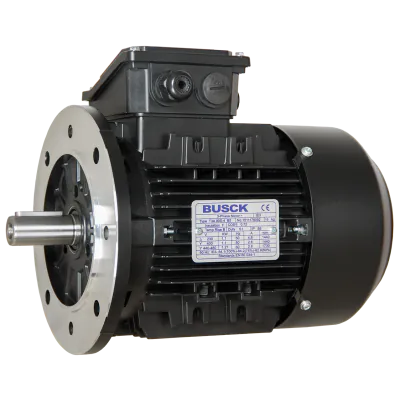

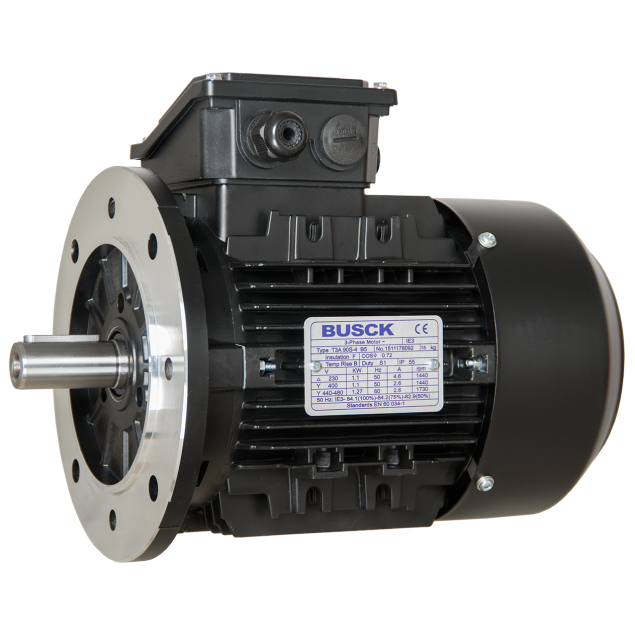

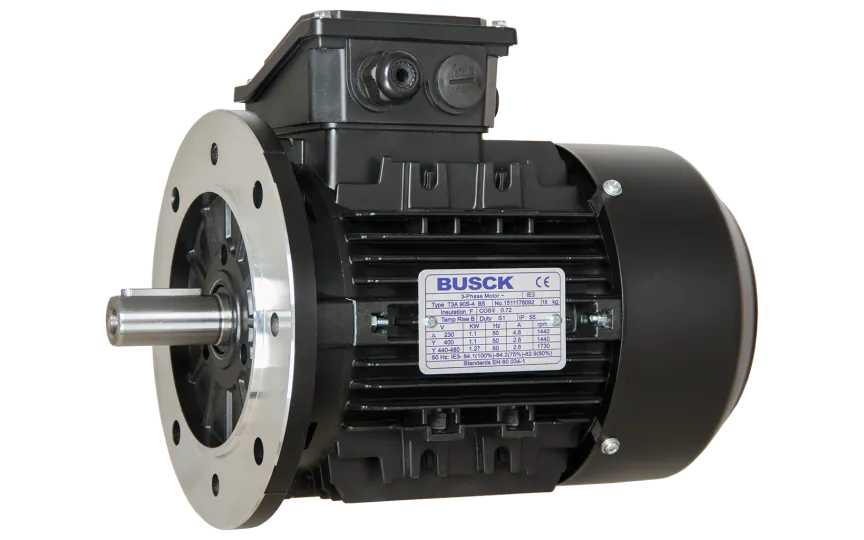

Busck AC motor T3A90S-2B5 1.5kW 2900RPM 230/400V 50Hz, aluminium
T3A90S-2B5The Busck AC motor is a electric motor designed to meet the tough demands while delivering outstanding performance. Crafted with precision engineering and using high-quality materials, this motor ensures reliability and efficiency in various industrial applications.
Specifications
Product description
Downloads
€471.71
In stock
Expected shipment: 03-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90S-2B5
Speed (RPM)
2900
Rated output (kW)
1.5
Efficiency (% FL)
84.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.39/3.1
Nominal torque (Nm)
4.94
Start current ratio (IA/IN)
8.3
Mounting
B5
IEC norm
90
BCD
165
Poles
2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Description
Key features:
- High efficiency: With an IE3-84.2 energy efficiency rating, this motor maximizes energy utilization, reducing operational costs.
- Aluminium construction: The motor's aluminium housing offers a lightweight yet sturdy structure, making it easier to handle and install.
- IP55 rating: The motor is protected against dust and water ingress, ensuring reliable operation even in challenging environments.
- Powerful performance: With a 1.5kW power rating and a maximum speed of 2900RPM, this motor delivers consistent and powerful performance.
- Wide voltage range: The motor supports both 230V and 400V power supplies, providing flexibility in various installations.
- B5 flange mounting: The B5 flange mounting design allows for straightforward installation and compatibility with standard equipment.
Specifications:
- Robust build: Built to withstand harsh operating conditions, the motor's rugged design ensures durability and longevity.
- Wide temperature range: Operating smoothly between -20°C to +40°C, this motor remains efficient in extreme temperature conditions.
