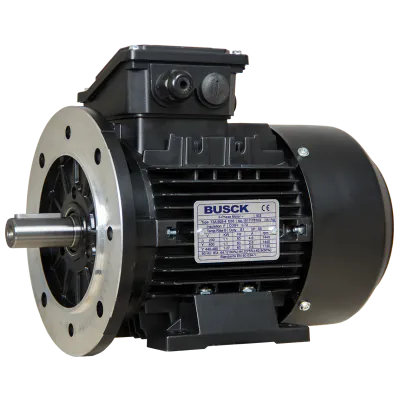

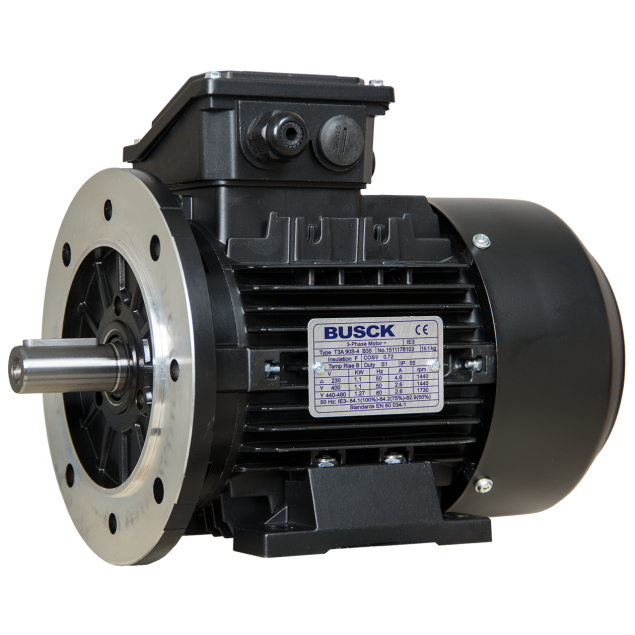

Busck AC motor T3A90S-2B34 1.5kW 2900RPM 230/400V 50Hz, aluminium
T3A90S-2B34The Busck AC Motor is a versatile and powerful electric motor designed to excel in demanding environments. Crafted with precision and durability in mind, this motor is engineered to endure harsh conditions and deliver exceptional performance. Whether it's in industrial applications or commercial settings, the Busck AC Motor is a reliable choice that guarantees optimal results.
Specifications
Product description
Downloads
€480.15
In stock
Expected shipment: 03-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90S-2B34
Speed (RPM)
2900
Rated output (kW)
1.5
Efficiency (% FL)
84.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.39/3.1
Nominal torque (Nm)
4.94
Start current ratio (IA/IN)
8.3
Mounting
B34
IEC norm
90
Poles
2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Description
Key features:
- IP55 rating: The motor is protected against dust and water, providing resistance to environmental contaminants and ensuring reliable operation even in challenging surroundings.
- High power output: With a power rating of 1.5kW, this motor delivers consistent and efficient performance, enabling it to handle demanding tasks with ease.
- High-speed operation: The motor operates at 2900RPM, enabling swift and efficient power delivery for various industrial processes.
- Dual voltage capability: The Busck AC Motor supports both 230V and 400V, offering flexibility and compatibility with different power systems.
- B34 flange: Designed with a B34 flange, this motor ensures easy mounting and integration into various equipment and machinery.
- High efficiency: Rated as IE3-84.2, the motor meets stringent efficiency standards, resulting in reduced energy consumption and lower operating costs.
Specifications:
- Robust build: Built with high-quality aluminium, the Busck AC Motor ensures sturdiness and longevity, making it ideal for heavy-duty applications.
- Wide temperature range: The Busck AC Motor is engineered to operate flawlessly in temperatures ranging from -20°C to +40°C, making it suitable for diverse climatic conditions.
