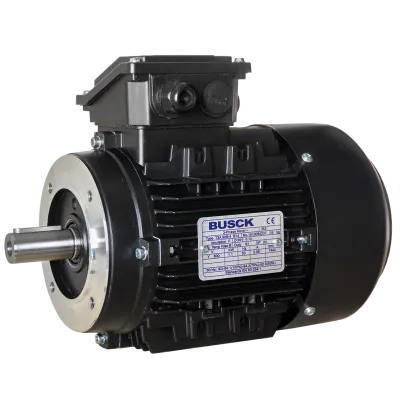

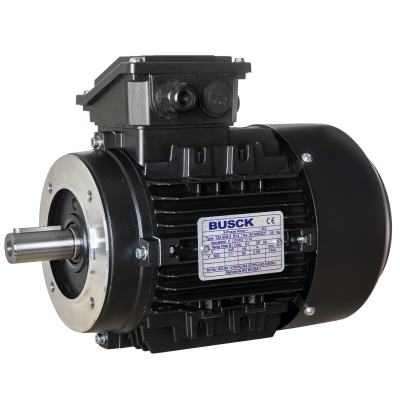

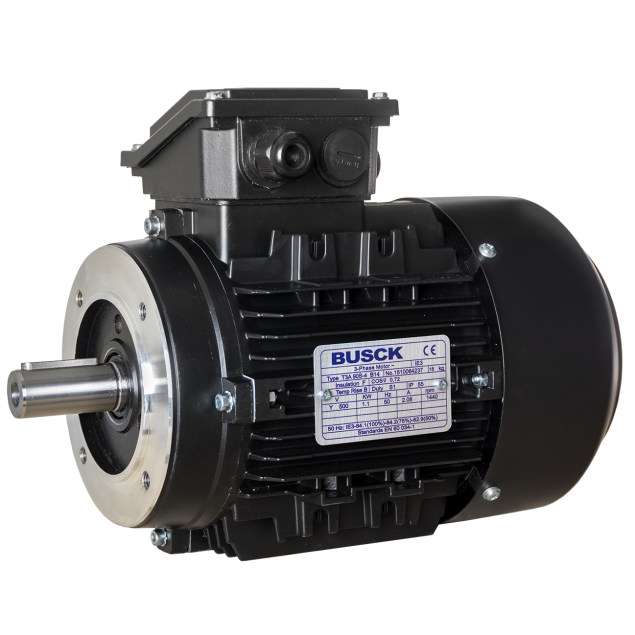

Busck AC motor T3A90S-2, 1,5kW, 2900RPM, B14, 230/400, 50 Hz, Aluminium

T3A90S-2

The Busck AC Motor T3A90S-2 is a compact and efficient electric motor designed for industrial applications. Featuring a rated output of 1.5 kW and rated speed of 2800 RPM, it delivers reliable performance for continuous operation. The motor is built with a B14 mounting configuration and a shaft diameter of Ø24 mm, suitable for various setups. Constructed from aluminium, it offers a lightweight and corrosion-resistant housing. The motor complies with the IE3 efficiency standard and is built to IEC size 90 with 2 poles. Additional features include TEFC cooling, IP55 protection class, voltage connection 230/400 V, and an industry-standard BCD of 115 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A90S-2

Speed (RPM)

2900

Rated output (kW)

1.5

Efficiency (% FL)

84.2

Voltage connection (Δ/Y)

230/400

Rated current at voltage

5.39/3.1

Nominal torque (Nm)

4.94

Start current ratio (IA/IN)

8.3

Mounting

B14

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor is protected against dust and water ingress, providing reliable operation in challenging environments.
1.5kW power output: The motor delivers a substantial power output of 1.5kW, ensuring efficient operation across various tasks.
High-speed operation: Running at 2900RPM, the motor ensures quick and efficient performance.
Voltage range: The Busck AC motor supports 230/400V power supply, offering versatility in installation.
B14 flange mounting: The B14 flange mount allows for easy installation and compatibility with a wide range of equipment.
High efficiency (IE3-84.2): This motor complies with IE3 efficiency standards, ensuring reduced energy consumption and cost-effectiveness.

Specifications:

Aluminium construction: The motor's aluminium construction ensures lightweight yet durable design, making it easy to handle and resistant to corrosion.
Wide temperature range: With a temperature range from -20°C to +40°C, the motor performs reliably in extreme temperature conditions.
