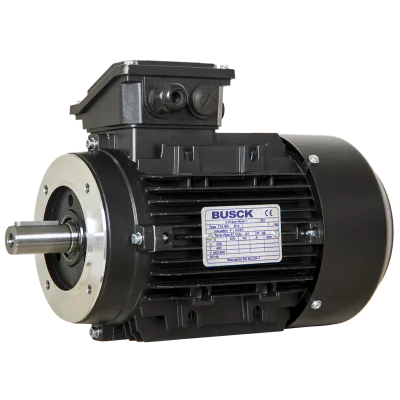

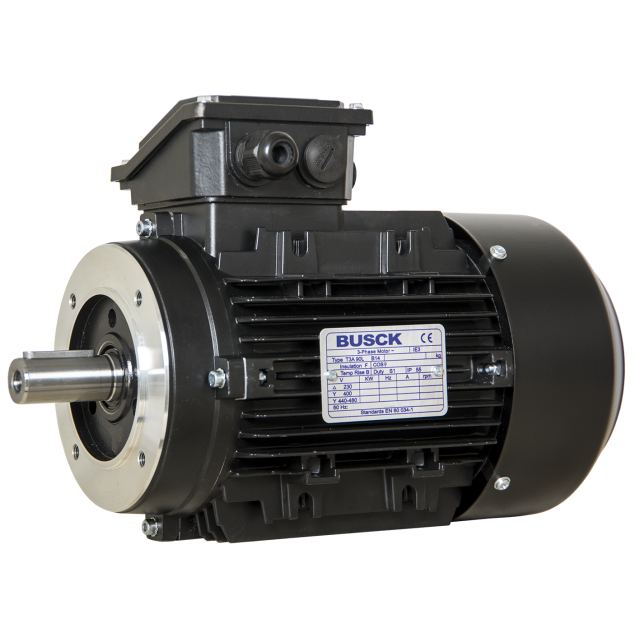

Busck AC motor T3A90L-4690V, 1.5kW, 1440RPM, 400/690V, 50Hz, aluminium

T3A90L-4690V

The Busck AC Motor, a reliable and high-performing three-phase synchronous motor, that is designed to meet the demands of various industrial applications. Built with high quality materials, this motor boasts an aluminum frame that provides durability and resistance against corrosion, making it suitable for use in harsh environments.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 23-02-2025

More Information

IP classification

IP 55

Model

T3A90L-4690V

Speed (RPM)

1440

Rated output (kW)

1.5

Efficiency (% FL)

85.7

Voltage connection (Δ/Y)

400/690

Rated current at voltage

3.6/2.07

Nominal torque (Nm)

9.9

Start current ratio (IA/IN)

7.2

Mounting

B14

IEC norm

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

Thermal protection

PTO

Description

Key features:

Robust construction: Built to withstand harsh demands and heavy-duty applications, making it highly reliable and durable.
High performance: The Busck electric motor delivers high performance, ensuring efficient and smooth operation in various industrial settings.
IP55 rating: With an IP55 rating, the motor is dust and water-resistant, offering reliable performance even in challenging environments.
1.5kW power output: This motor boasts a power output of 1.5kW.
1440RPM speed: The motor operates at a speed of 1440 revolutions per minute.
Wide voltage range: Designed to accommodate different voltage requirements, the motor supports operation at 400/690V.
B14 flange mounting: The motor is equipped with a B14 flange, simplifying installation and providing secure and stable mounting.
IE3 efficiency: With an IE3 efficiency rating, this motor helps reduce energy consumption.

Specifications:
