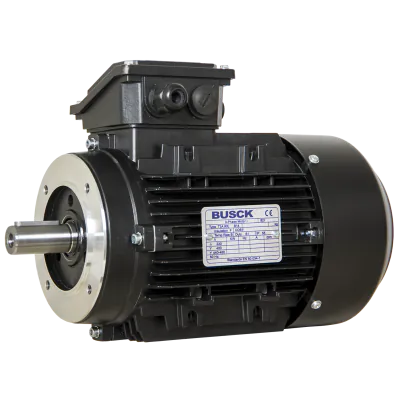

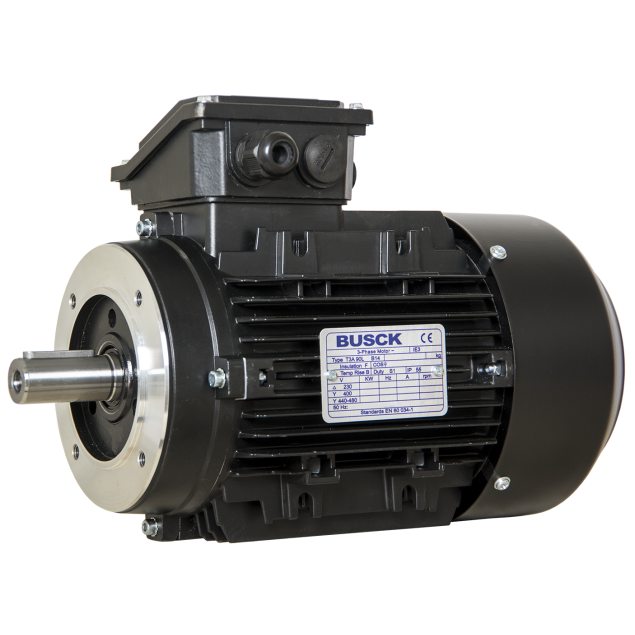

Busck AC motor T3A90L-4A22, 1.5kW, 1440RPM, 230/400V, 50Hz, ATEX 22, aluminium

T3A90L-4A22

The Busck AC motor 1.5kW 1440RPM 230/400V B14 ATEX 22 is a three-phase aluminum asynchronous motor designed to operate in zones where there is a risk of gas or combustible dust. The motor has an efficiency class IE3, an insulation class F and a protection degree IP55. The motor has a torque of 9.95 Nm and a starting current of 8.1 A.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 19-01-2025

More Information

IP classification

IP 65

Producer

Busck

Model

T3A90L-4A22

Speed (RPM)

1440

Rated output (kW)

1.5

Efficiency (% FL)

85.3

Voltage connection (Δ/Y)

230/400

Rated current at voltage

6.05/3.48

Nominal torque (Nm)

9.95

Start current ratio (IA/IN)

8.1

Mounting

B14

IEC norm

BCD

115

Poles

Certifications

ATEX 2-22

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

Thermal protection

PTC

Description

Key features:

ATEX 22 certified: Guarantees that the motors adhere to the safety standards, demonstrated by their compliance with ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 certifications.
IP65 rating: The motor boasts an IP65 rating, providing protection against dust and water, enhancing its durability and reliability even in challenging environments.
High performance: With a power output of 1.5kW and a speed of 1440RPM, this motor delivers efficient and consistent performance for a wide range of industrial applications.
Voltage compatibility: The motor is designed to operate with both 230V and 400V power supply, offering flexibility in installation and usage.
B14 flange: The B14 flange configuration ensures easy mounting and compatibility with various industrial machinery setups.
High efficiency: Rated as IE3, this motor meets high-efficiency standards, contributing to energy savings and reducing operational costs.

Specifications:
