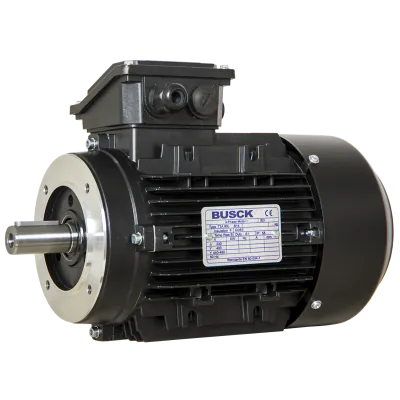

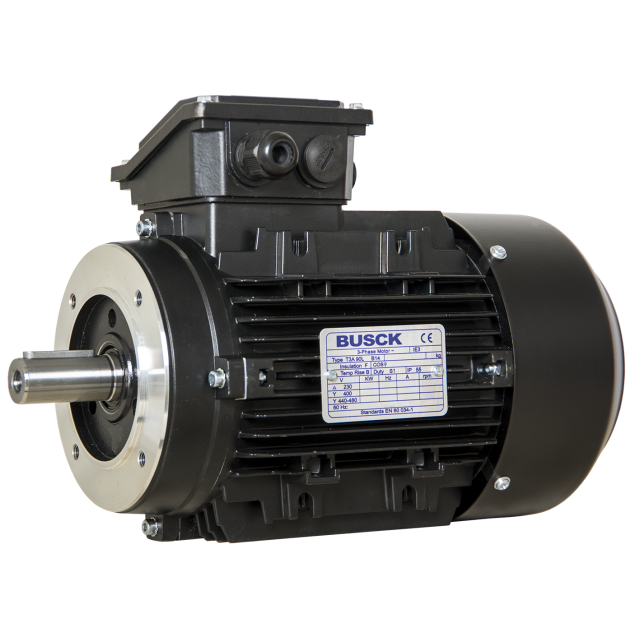

Busck AC motor T3A90L-4, 1.5kW, 1440RPM, 230/400V, 50Hz, aluminium
T3A90L-4The Busck AC motor is a reliable and versatile three-phase synchronous motor designed to excel in demanding industrial environments. With its sturdy construction and performance attributes, this motor is built to withstand harsh conditions and deliver consistent results.
Specifications
Product description
Downloads
€598.39
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90L-4
Speed (RPM)
1440
Rated output (kW)
1.5
Efficiency (% FL)
85.3
Voltage connection (Δ/Y)
230/400
Rated current at voltage
6.05/3.48
Nominal torque (Nm)
9.95
Start current ratio (IA/IN)
8.1
Mounting
B14
IEC norm
90
BCD
115
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor is protected against dust and water, making it suitable for various indoor and outdoor applications.
- High power output: Boasting a 1.5kW power rating, the motor provides ample power for various industrial applications.
- Efficient speed: Operating at 1440RPM, the motor delivers precise and consistent performance.
- Voltage flexibility: Supports 230/400V input, allowing for adaptability to different power sources.
- B14 flange: The motor is equipped with a B14 flange, enabling easy mounting and integration into existing systems.
- IE3 efficiency: Compliant with IE3 energy efficiency standards, ensuring optimal energy usage.
Specifications:
- Robust build: Constructed with durable aluminum materials.
- Wide temperature range: -20°C to +40°C.
