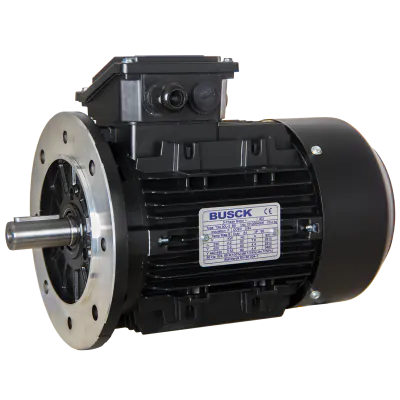

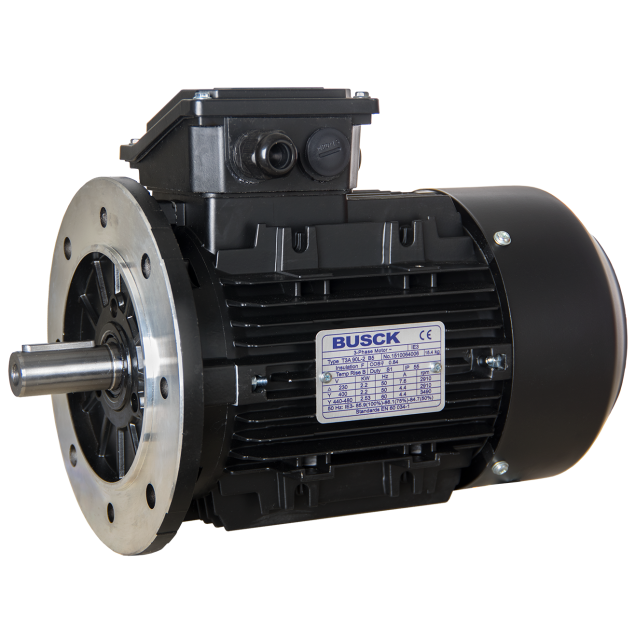

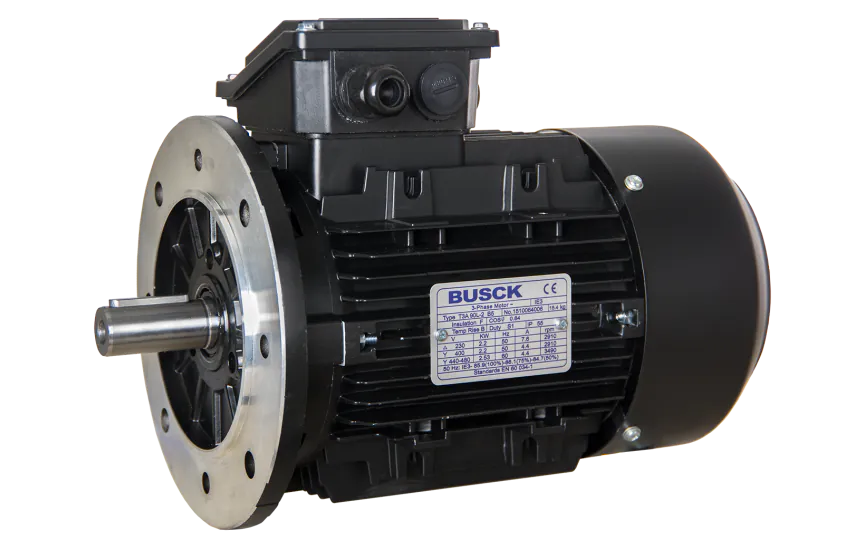

Busck AC motor T3A90L-6B5, 1.1kW, 950RPM, 230/400V, 50Hz, aluminium
T3A90L-6B5The Busck AC Motor is a three-phase synchronous motor motor designed to excel under harsh demands. With its durable construction and specifications, it's the ideal choice for various industrial applications.
Specifications
Product description
Downloads
€629.94
In stock
Expected shipment: 27-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90L-6B5
Speed (RPM)
950
Rated output (kW)
1.1
Efficiency (% FL)
81
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.04/2.9
Nominal torque (Nm)
11.06
Start current ratio (IA/IN)
5.2
Mounting
B5
IEC norm
90
BCD
165
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor comes with an IP55 rating, making it highly resistant to dust and water ingress, ideal for challenging environments.
- 1.1kW power output: This motor delivers a powerful 1.1kW output, providing the strength necessary for demanding tasks.
- 950RPM: With a rotation speed of 950RPM, the motor ensures efficient performance in a wide range of applications.
- IE3efficiency class: The motor boasts an IE3 efficiency class, meaning it operates at high energy efficiency levels, reducing energy consumption.
- Voltage rating: The motor is designed to work with both 230V and 400V power supplies, providing versatility in various settings.
- B5 flange: Equipped with a B5 flange, the motor's installation becomes more straightforward and reliable.
Specifications:
- Aluminum build: The motor is constructed from aluminum materials.
- Temperature range: -20°C to +40°C.
