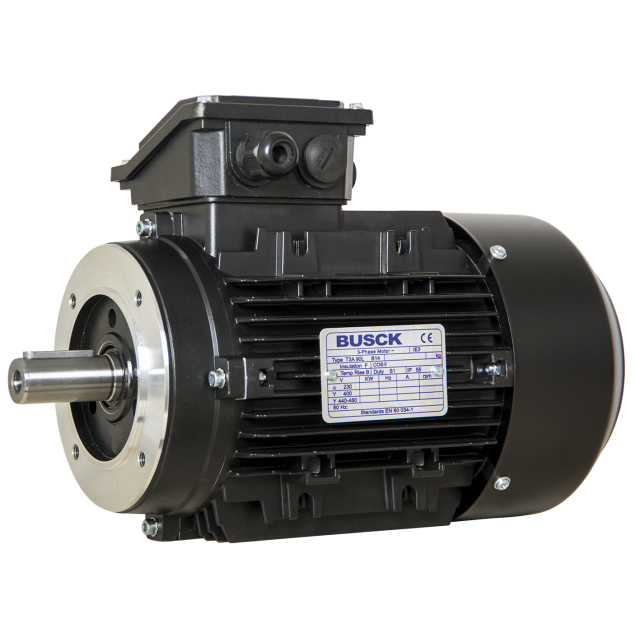

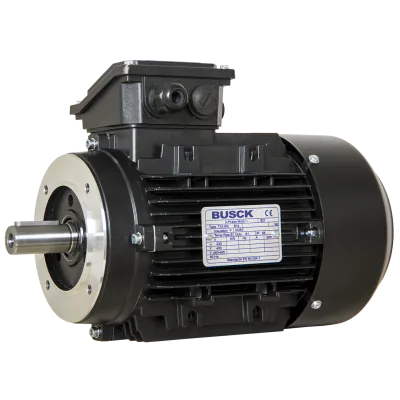

Busck AC motor T3A90L-6, 1.1kW, 950RPM, 230/400V, 50Hz, aluminium
T3A90L-6The Busck AC motor is a three-phase synchronous motor designed to perform in demanding industrial environments, delivering performance and reliability. Crafted with precision and engineering excellence, this motor is built to withstand harsh conditions while providing optimal efficiency.
Specifications
Product description
Downloads
€629.94
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A90L-6
Speed (RPM)
950
Rated output (kW)
1.1
Efficiency (% FL)
67.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5,04/2,9
Nominal torque (Nm)
11.06
Start current ratio (IA/IN)
2.7
Mounting
B14
IEC norm
90
BCD
115
Poles
6
Efficiency standard
IE2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- High efficiency: Complies with IE2 efficiency standards, promoting energy savings and reducing operational costs.
- Versatile power: Boasts a 1.1kW power rating.
- Smooth operation: Runs at a steady 950RPM.
- All-weather protection: IP55 rated housing, safeguarding the motor from dust, water, and other environmental contaminants.
- Easy installation: Features a B14 flange, simplifying the mounting process for seamless integration.
Specifications:
- Robust construction: Engineered with aluminium.
- Temperature resilient: -20°C to +40°C.
