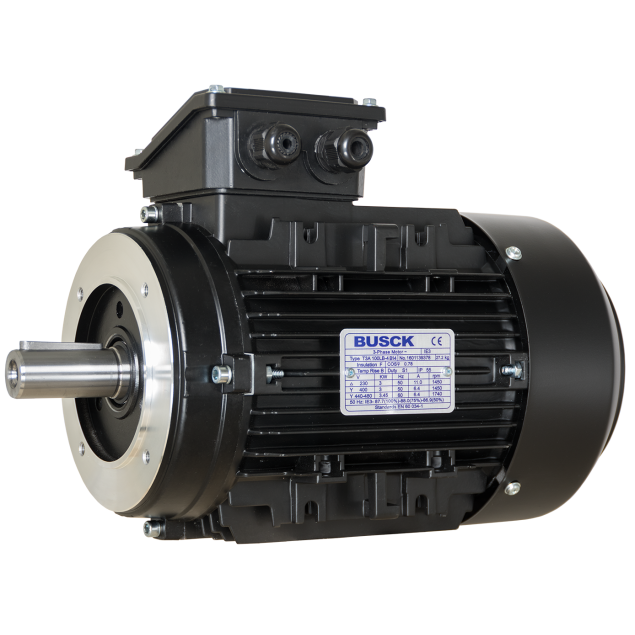

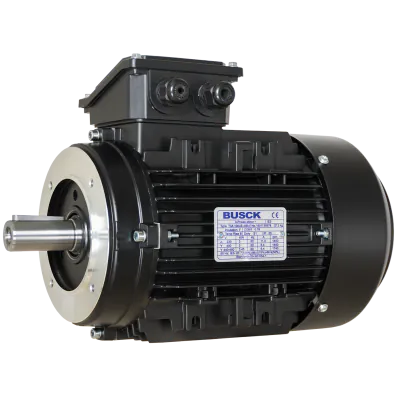

Busck AC motor T3A100LB-8, 1.1kW, 700RPM, 230/400V, 50Hz, aluminium

Busck AC motor T3A100LB-8, 1.1kW, 700RPM, 230/400V, 50Hz, aluminium

T3A100LB-8

The Busck AC motor is a 3-phase asynchronous motor designed to handle tough conditions. It's built with quality materials and smart engineering, providing you with a reliable and efficient motor that can be used for a wide range of industrial tasks.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 03-12-2024

More Information

IP classification

IP 55

Producer

Busck

Model

T3A100LB-8

Speed (RPM)

700

Rated output (kW)

1.1

Efficiency (% FL)

77.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

5.23/3.01

Nominal torque (Nm)

15.01

Start current ratio (IA/IN)

4.3

Mounting

B14

IEC norm

100

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

Thermal protection

PTO

Description

Key Features:

IP55 rating: With an IP55 rating, the motor is dust-tight and protected against low-pressure water jets.
1.1kW power output: The motor boasts a powerful 1.1kW output.
700RPM speed: Operating at 700RPM.
IE3 efficiency: This motor meets IE3 efficiency standards.
230/400V voltage: Compatible with both 230V and 400V power sources.
B14 flange: The B14 flange design enables easy mounting and integration into existing setups.

Specifications:
