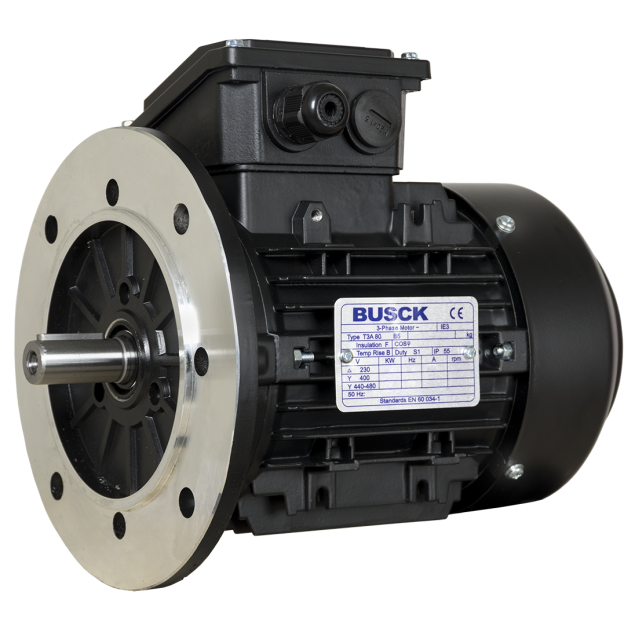

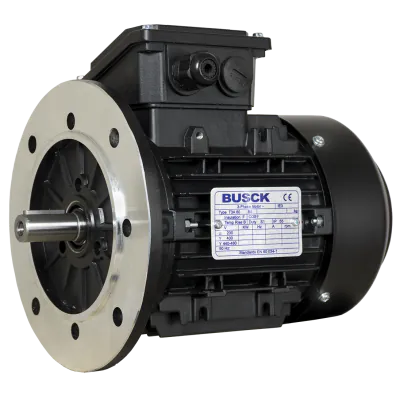

Busck AC motor T3A80B-2B5A22, 1.1kW, 2900RPM, 230/400V, 50Hz, ATEX 22, aluminium

T3A80B-2B5A22

The Busck AC Motor T3A80B-2B5A22 is a three-phase electric motor designed for industrial applications. It features a power rating of 1.1 kW and a nominal speed of 2800 RPM (max 2900 RPM). Built with a durable aluminium housing, this motor complies with IE3 efficiency standard and follows the IEC 80 frame size. It is equipped with a TEFC cooling system, B5 flange mounting, and a shaft diameter of Ø19 mm. Certified to ATEX zone 2-22, it is suitable for use in potentially explosive atmospheres. Additional specifications include IP65 protection, 2 poles, and a voltage of 230/400V at 50Hz.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 65

Model

T3A80B-2B5A22

Speed (RPM)

2900

Rated output (kW)

1.1

Efficiency (% FL)

82.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

4.07/2.34

Nominal torque (Nm)

3.63

Start current ratio (IA/IN)

8.7

Mounting

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

ATEX 22 certified: Confirms motor compliance with rigorous safety standards, meeting ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2.
IP65 rating: Provides excellent protection against dust and water ingress, enhancing motor durability.
High power output: With a 1.1kW capacity, this motor delivers efficient and reliable performance.
High-speed operation: Capable of reaching 2900RPM for optimal productivity.
Voltage versatility: Compatible with both 230V and 400V power supplies, catering to various industrial setups.
B5 flange: Enables easy mounting and integration into existing systems.
High energy efficiency: IE3 rating ensures reduced energy consumption, promoting sustainability.

Specifications:
