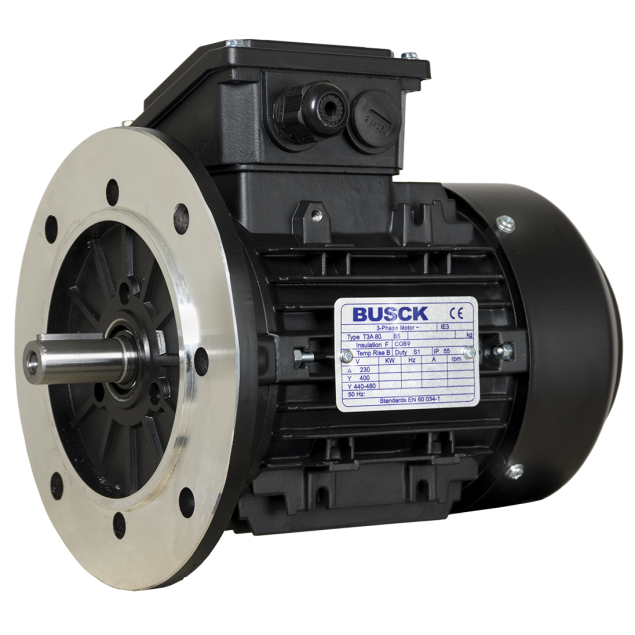

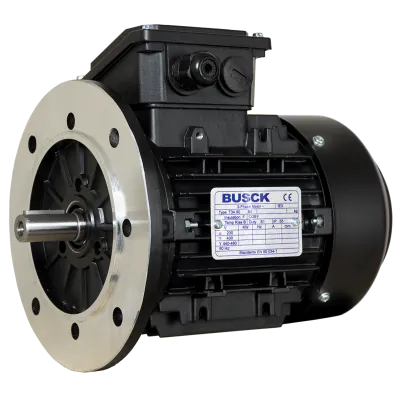

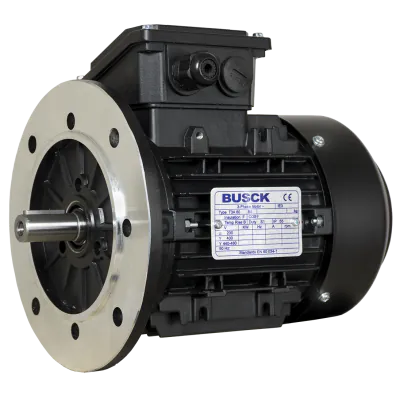

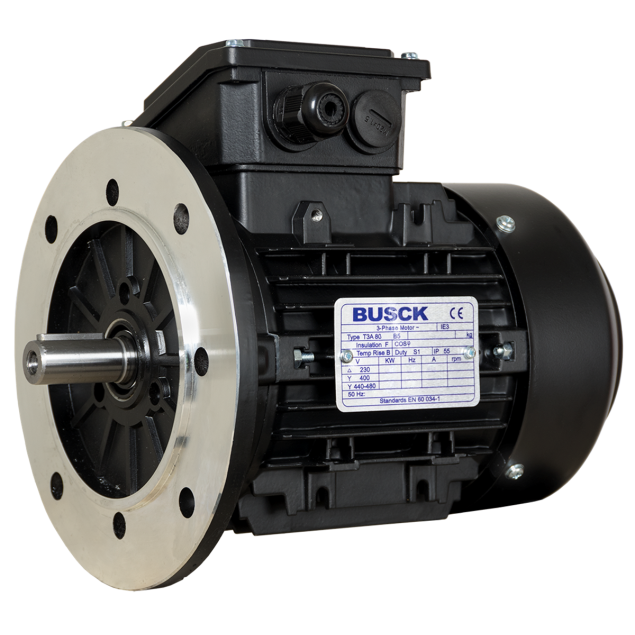

Busck AC motor T3A80B-2B5, 1,1kW, 2900RPM, B5, 230/400, 50 Hz, Aluminium

T3A80B-2B5

The Busck AC Motor T3A80B-2B5 is a 1.1 kW electric motor designed for industrial applications with a rated speed of 2800 RPM and speed up to 2900 RPM. It features B5 mounting and complies with the IEC 80 norm. The motor has a shaft diameter of Ø19 mm and is equipped with TEFC (Totally Enclosed Fan Cooled) cooling. Manufactured in aluminium, it meets the IE3 efficiency standard and has an IP55 protection class. It supports a voltage connection of 230/400V at 50 Hz and features 2 poles. BCD: 165 mm. Suitable for environments requiring high efficiency and durability.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80B-2B5

Speed (RPM)

2900

Rated output (kW)

1.1

Efficiency (% FL)

82.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

4.07/2.34

Nominal torque (Nm)

3.63

Start current ratio (IA/IN)

8.7

Mounting

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 ingress protection rating, safeguarding it against dust and water ingress, making it suitable for both indoor and outdoor use.
High power output: With a power rating of 1.1kW, the motor delivers a reliable and efficient performance, meeting the requirements of various applications.
Speed and voltage: Operating at 2900RPM, the motor is designed to handle 230/400V voltage, providing optimal power delivery.
B5 flange mounting: The B5 flange design allows for easy and secure mounting, making installation hassle-free.
High efficiency: The motor achieves an IE3-82.7 efficiency rating, ensuring that it consumes less energy while delivering superior output.

Specifications:

Robust construction: Built to last, the motor features a rugged aluminum housing, ensuring long-lasting durability and resistance to wear and tear.
Wide temperature range: The motor is engineered to work flawlessly in temperatures ranging from -20°C to +40°C, making it suitable for diverse environments.
