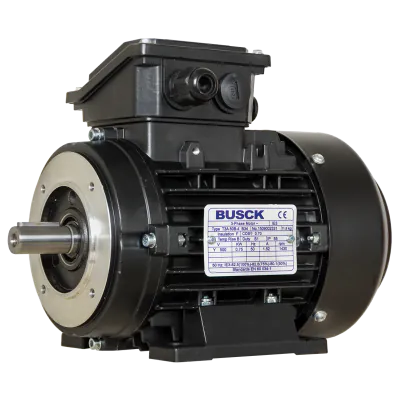

Busck AC motor T3A80B-2B34, 1,1kW, 2900RPM, B34, 230/400, 50 Hz, Aluminium

T3A80B-2B34

The Busck AC motor T3A80B-2B34 is a compact and efficient electric motor designed for demanding industrial applications. This model complies with the IE3 efficiency standard and follows IEC size 80. The motor delivers a rated output of 1.1 kW at a speed of 2900 RPM and operates with 2 poles. It supports a voltage connection of 230/400 V and uses TEFC (Totally Enclosed Fan Cooled) cooling. The chassis is made of aluminium and it features a B34 mounting and a shaft diameter of Ø19 mm. With a BCD of 100 mm and an IP 55 protection rating, this motor is suitable for robust environments.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80B-2B34

Speed (RPM)

2900

Rated output (kW)

1.1

Efficiency (% FL)

82.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

4.07/2.34

Nominal torque (Nm)

3.63

Start current ratio (IA/IN)

8.7

Mounting

B34

BCD

100

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: Provides reliable protection against dust and water ingress, making it suitable for outdoor and indoor use.
Powerful performance: Boasting a 1.1kW output, this motor delivers excellent torque and efficiency for demanding tasks.
High-speed operation: Capable of reaching 2900RPM, ensuring fast and efficient operation in various applications.
Voltage flexibility: Supports both 230V and 400V power supply, providing adaptability to different electrical systems.
B34 flange: The motor's B34 flange design ensures easy installation and compatibility with various equipment setups.
IE3-82.7 efficiency: Complies with the high-efficiency IE3 standard, reducing energy consumption and operating costs.

Specifications:

Robust build: Crafted with high-quality aluminum materials, ensuring durability and longevity even in challenging environments.
Wide temperature range: Functioning flawlessly in temperatures ranging from -20°C to +40°C, making it suitable for diverse climates.
