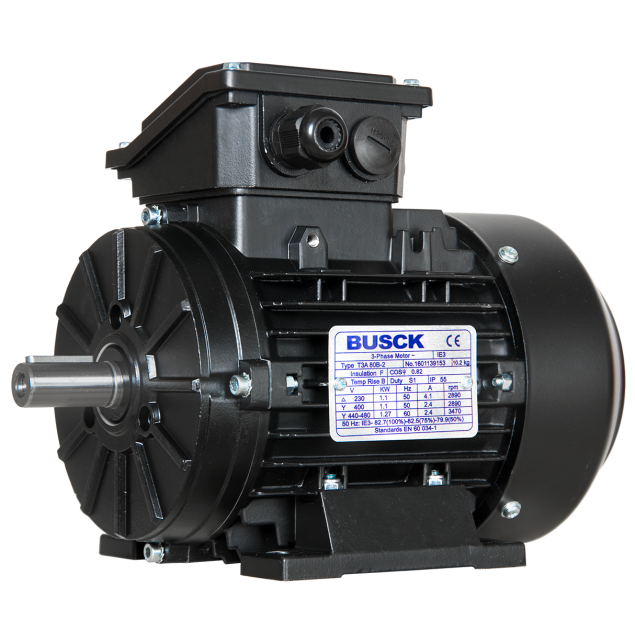

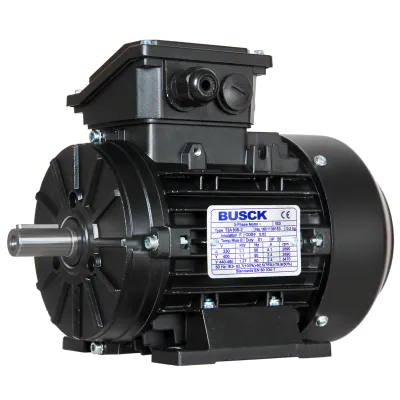

Busck AC motor T3A80B-2B3, 1,1kW, 2900RPM, B3, 230/400, 50 Hz, Aluminium
T3A80B-2B3The Busck AC Motor T3A80B-2B3 is a high-efficiency electric motor designed for industrial applications. This model delivers a rated output of 1.1 kW with a rated speed of 2800 RPM and a maximum speed of 2900 RPM. Built according to IEC frame size 80 and mounted in B3 foot mounting, it features 2 poles and a shaft diameter of Ø19 mm. Constructed with a robust aluminium housing and Totally Enclosed Fan Cooled (TEFC) design, it meets the IE3 efficiency standard and has an IP55 protection class. Voltage connection is 230/400 V, 50 Hz.
Specifications
Product description
Downloads
€351.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T3A80B-2B3
Speed (RPM)
2900
Rated output (kW)
1.1
Efficiency (% FL)
82.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.07/2.34
Nominal torque (Nm)
3.63
Start current ratio (IA/IN)
8.7
Mounting
B3
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: The motor boasts an IP55 rating, making it dust and water-resistant, enhancing its longevity and reliability.
- 1.1kW power output: Equipped with a high-power output of 1.1kW, providing ample torque and performance for demanding tasks.
- 2900RPM speed: With a rapid rotation speed of 2900RPM, this motor can efficiently drive various machinery and equipment.
- 230/400V voltage: Operates on a versatile voltage range of 230/400V, making it adaptable to different power sources.
- B3 Flange mounting: The B3 flange mounting offers easy installation and integration into existing systems.
- IE3-82.7 efficiency: Engineered with premium efficiency, reaching IE3-82.7 standards, resulting in reduced energy consumption and cost-effectiveness.
Specifications:
- Aluminium construction: Built with a sturdy and lightweight aluminium body, ensuring durability without compromising on efficiency.
- Wide temperature range: Capable of operating within a temperature range of -20°C to +40°C, allowing it to function reliably in diverse environments.
