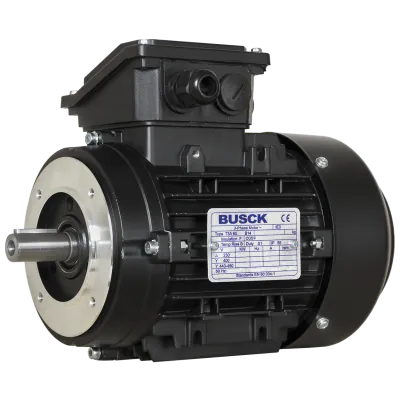

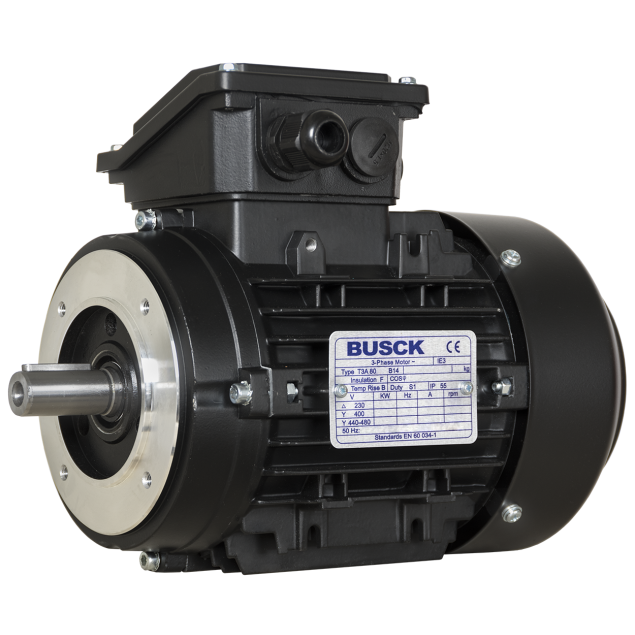

Busck AC motor T3A80B-2, 1.1kW, 2900RPM, 230/400V, 50Hz, aluminium
T3A80B-2The Busck AC motor is a three-phase synchronous motor designed to excel under harsh conditions. Crafted with utmost precision and built to endure demanding environments, this motor is an ideal choice for various industrial applications. With a focus on durability and flexibility, the Busck AC motor guarantees performance.
Specifications
Product description
Downloads
€362.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A80B-2
Speed (RPM)
2900
Rated output (kW)
1.1
Efficiency (% FL)
82.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.07/2.34
Nominal torque (Nm)
3.63
Start current ratio (IA/IN)
8.7
Mounting
B14
IEC norm
80
BCD
100
Poles
2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water, enhancing its resilience in challenging settings.
- High power output: The 1.1kW motor provides ample power to tackle even the most demanding tasks efficiently.
- High speed operation: With a remarkable 2900RPM speed, the motor delivers fast and precise performance.
- Voltage options: The motor supports both 230V and 400V configurations, providing adaptability to various power supplies.
- B3 flange mounting: The B3 flange design allows for easy and secure installation in various setups.
- High energy efficiency: Boasting an IE3-82.7 energy efficiency rating, the motor minimizes energy consumption and reduces operating costs.
Specifications:
- Robust construction: The motor boasts a rugged aluminum housing, ensuring superior strength and longevity.
- Wide temperature range: Designed to withstand extreme temperatures, the motor performs flawlessly in environments ranging from -20°C to +40°C.
