Busck AC motor T3A90S-4500V, 1,1kW, 1444RPM, B14, 500, 50 Hz, Aluminium

T3A90S-4500V

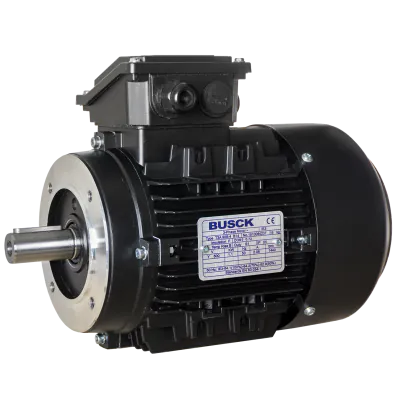

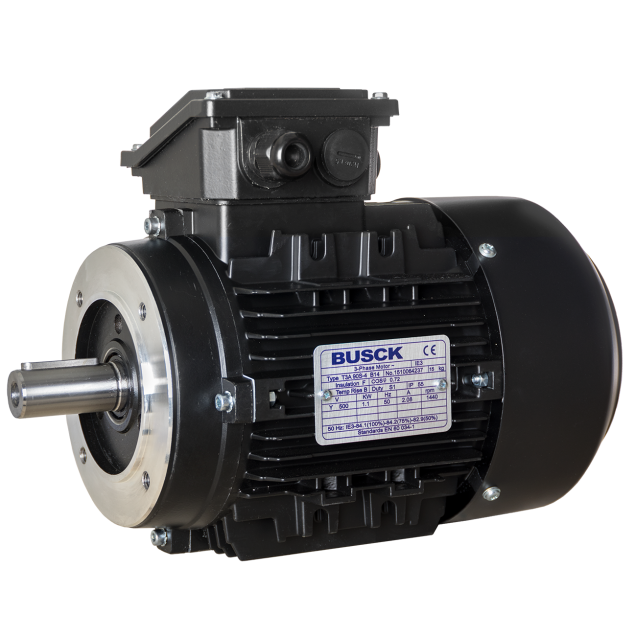

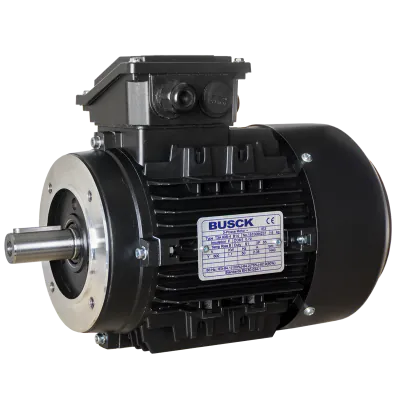

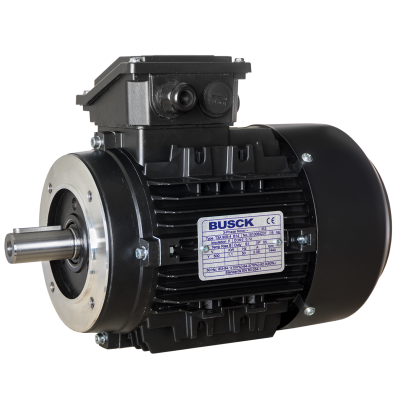

The Busck AC Motor T3A90S-4500V is a robust electric motor designed for industrial applications. This model delivers a rated output of 1.1 kW with a rated speed of 1400 RPM and a maximum speed of 1444 RPM. Compliant with the IE3 efficiency standard and built according to the IEC 90 norm, it ensures energy-efficient operation. The motor features TEFC cooling, IP55 protection class, and a mounting type B14. Constructed from aluminium, it includes a shaft diameter of Ø24 mm and supports a voltage connection of 500 V. With 4 poles and a BCD of 115 mm, this motor is suitable for demanding environments requiring durability and performance.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A90S-4500V

Speed (RPM)

1444

Rated output (kW)

1.1

Efficiency (% FL)

84.9

Voltage connection (Δ/Y)

500

Rated current at voltage

2.1

Nominal torque (Nm)

7.3

Start current ratio (IA/IN)

6.7

Mounting

B14

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating guarantees protection against dust and water, making it suitable for challenging environments.
High-power output of 1.1kW enables efficient operation in various industrial processes.
Impressive rotational speed of 1444RPM ensures swift and seamless performance.
Operating voltage of 500V offers optimal power delivery for consistent results.
B14 flange facilitates easy installation and compatibility with different setups.
IE3 efficiency rating ensures energy-saving and environmentally friendly operation.

Specifications:
