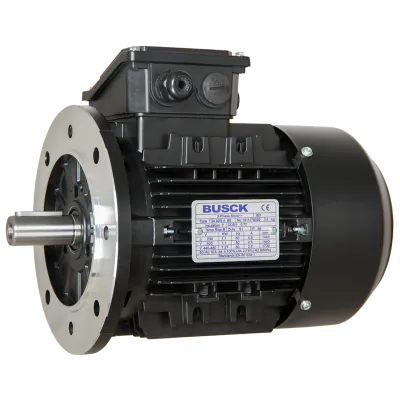

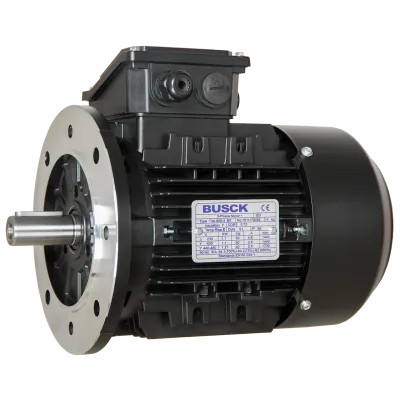

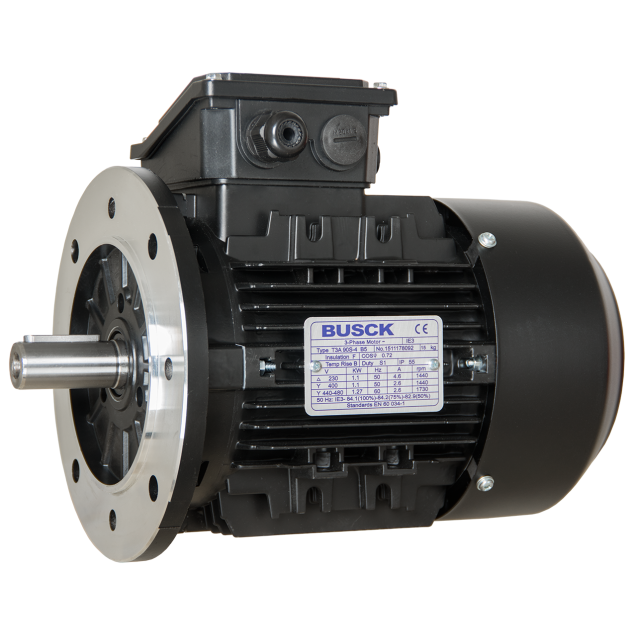

Busck AC motor T3A90S-4B5, 1.1kW, 1440RPM, 230/400V, 50Hz, aluminium
T3A90S-4B5The Busck AC motor is a reliable and durable three-phase synchronous motor designed to excel under demanding conditions. Crafted with precision and quality materials, this motor is the perfect solution for a wide range of industrial applications.
Specifications
Product description
Downloads
€528.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A90S-4B5
Speed (RPM)
1440
Rated output (kW)
1.1
Efficiency (% FL)
84.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.43/2.55
Nominal torque (Nm)
7.3
Start current ratio (IA/IN)
7.7
Mounting
B5
IEC norm
90
BCD
165
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Robust construction: Built to withstand harsh operating conditions, ensuring longevity and dependability.
- High performance: Delivers powerful performance to handle heavy-duty tasks efficiently.
- IP55 rating: Provides protection against dust and water ingress, making it suitable for various environments.
- 1.1kW power output: Offers ample power for demanding applications, ensuring optimal performance.
- 1444RPM speed: Provides precise control and consistent speed for smooth operation.
- 230/400V voltage rating: Versatile motor compatible with different power supply configurations.
- B5 flange: Convenient mounting flange design for easy installation.
- IE3 efficiency: High energy efficiency, reducing power consumption and operating costs.
Specifications:
- Aluminum body: Lightweight yet durable aluminum construction.
- Wide temperature range: From -20°C to +40°C.
