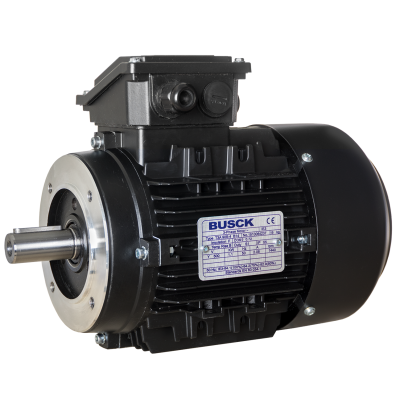

Busck AC motor T3A90S-4, 1.1kW, 1440RPM, 230/400V, 50Hz, aluminium
T3A90S-4The Busck AC motor is a robust and flexible high-performance three-phase synchronous motor designed to withstand the harsh demands. Crafted with precision using high quality materials, this electric motor ensures reliability and efficiency for a wide range of applications.
Specifications
Product description
Downloads
€528.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 55
Model
T3A90S-4
Speed (RPM)
1440
Rated output (kW)
1.1
Efficiency (% FL)
84.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.43/2.55
Nominal torque (Nm)
7.3
Start current ratio (IA/IN)
7.7
Mounting
B14
IEC norm
90
BCD
115
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Weather-resistant: Boasting an IP55 rating, the motor is well-protected against dust and water ingress, making it suitable for both indoor and outdoor environments.
- Powerful performance: With a power output of 1.1kW and an speed of 1440RPM, the Busck AC motor delivers consistent and reliable performance.
- Versatile voltage: This motor operates effectively on both 230V and 400V power supplies.
- B14 flange: The B14 flange design ensures easy mounting and compatibility with a wide range of industrial applications.
- High efficiency: Rated as IE3, this motor adheres to premium energy efficiency standards, reducing energy consumption and operational costs.
Specifications:
- Durable build: Built to last, the motor features a rugged aluminum construction.
- Wide temperature range: -20°C to +40°C.
