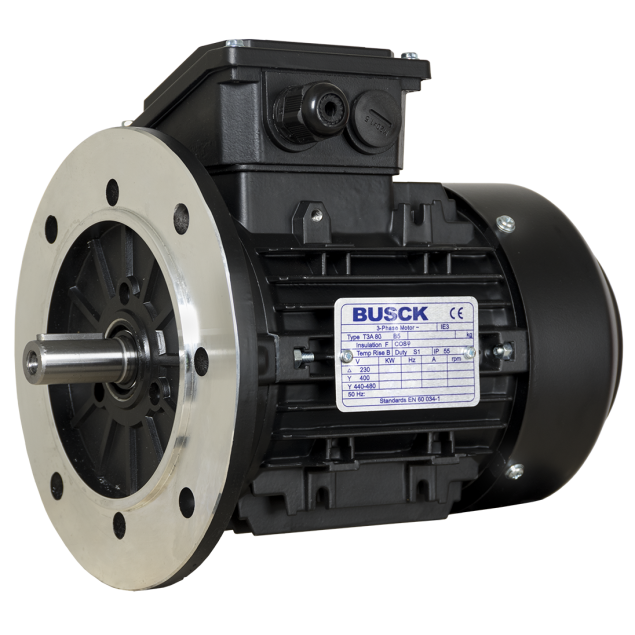

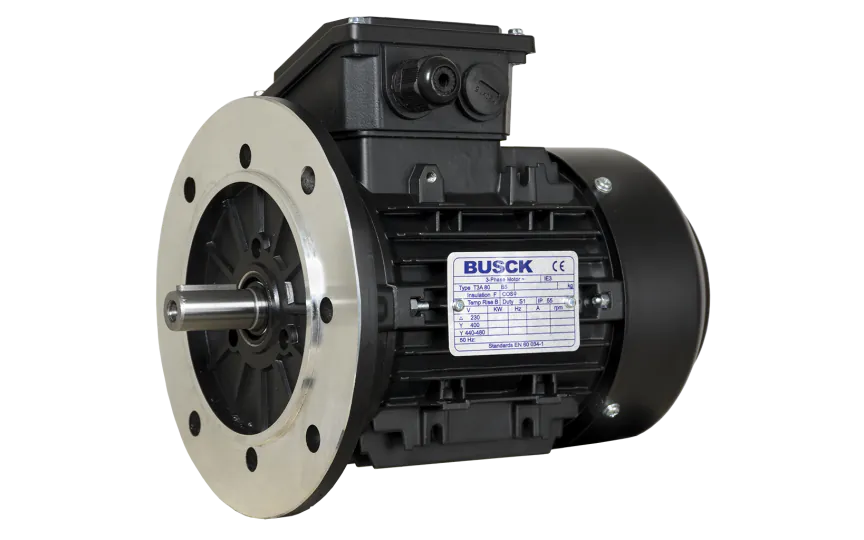

Busck AC motor T3A80C-4B5, 1.1kW, 1430RPM, 230/400V, 50Hz, aluminium
T3A80C-4B5The Busck AC motor is a three-phase synchronous motor designed to excel in challenging conditions, offering durability and performance. Engineered with precision and quality in mind, this motor is the ideal choice for various industrial applications.
Specifications
Product description
Downloads
€390.88
In stock
Expected shipment: 03-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T3A80C-4B5
Speed (RPM)
1430
Rated output (kW)
1.1
Efficiency (% FL)
84.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.43/2.55
Nominal torque (Nm)
7.35
Start current ratio (IA/IN)
6.6
Mounting
B5
IEC norm
80
BCD
165
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor's ingress protection rating of IP55 guarantees protection against dust and water, making it suitable for use in demanding environments.
- High power output: With a power rating of 1.1kW.
- Efficient performance: Running at 1430RPM, the Busck AC motor offers efficient operation.
- Wide voltage range: Designed to accommodate different power supplies, the motor can operate on either 230V or 400V.
- B5 flange mounting: The B5 flange allows for straightforward and secure mounting in various industrial setups.
- IE3 efficiency: Compliant with IE3 efficiency standards, this motor ensures reduced energy consumption and lower operational costs.
Specifications:
- Robust construction: The Busck AC motor boasts a sturdy aluminum frame.
- Temperature resilience: From -20°C to +40°C.
