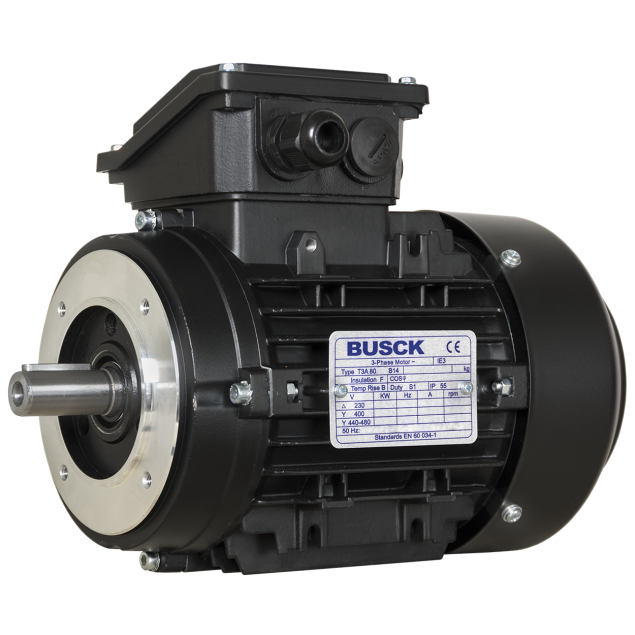

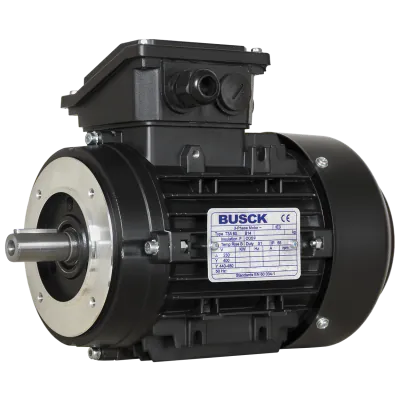

Busck AC motor T3A80C-4, 1,1kW, 1430RPM, B14, 230/400, 50 Hz, Aluminium

T3A80C-4

The Busck AC Motor T3A80C-4 is a compact and reliable electric motor designed for industrial applications. This model features a rated output of 1.1 kW and operates at a speed of 1430 RPM. It is built according to the IEC 80 frame size and conforms to the IE3 efficiency standard. The motor is equipped with 4 poles and a B14 mounting configuration. The shaft diameter is Ø19 mm, and it is designed for a voltage connection of 230/400 V, 50 Hz. The housing is made of aluminium and provides IP55 protection. A totally enclosed fan cooled (TEFC) design ensures durability across various environments. The bolt circle diameter (BCD) is 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80C-4

Speed (RPM)

1430

Rated output (kW)

1.1

Efficiency (% FL)

84.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

4.43/2.55

Nominal torque (Nm)

7.35

Start current ratio (IA/IN)

6.6

Mounting

B14

BCD

100

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is fully protected against dust and water ingress, making it suitable for both indoor and outdoor applications.
High power output: The motor delivers an impressive power of 1.1kW, making it suitable for handling heavy-duty tasks efficiently.
Efficient operation: Operating at 1430RPM, the motor offers optimal efficiency and smooth performance, minimizing energy consumption.
Flexible voltage range: The motor is designed to handle dual voltage options, operating on 230V or 400V, ensuring adaptability to various power systems.
B14 flange mounting: The B14 flange allows for easy and secure installation, providing flexibility in motor mounting arrangements.
High energy efficiency: With an IE3 efficiency rating, the motor helps save energy and reduce operational costs.

Specifications:
