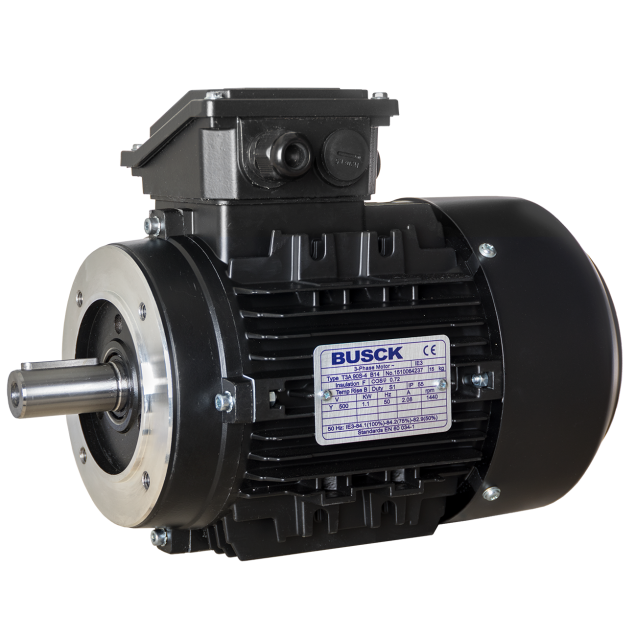

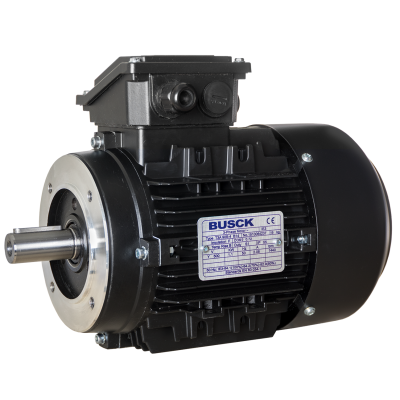

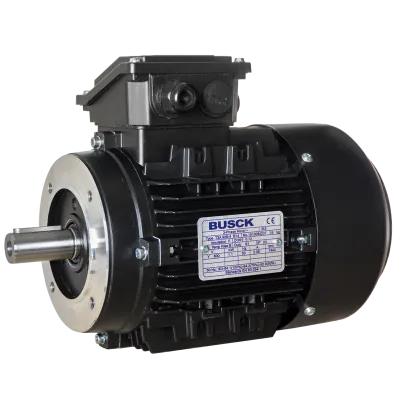

Busck AC motor T3A90S-6, 0,75kW, 950RPM, B14, 230/400, 50 Hz, Aluminium

T3A90S-6

The Busck AC Motor T3A90S-6 is a compact and reliable electric motor designed for industrial applications. With a rated output of 0.75 kW and a rated speed of 900 RPM (actual speed: 950 RPM), this IEC 90-frame motor operates within the IE3 efficiency standard. The motor features TEFC cooling, IP55 protection, and a B14 flange mounting. Constructed from aluminium, it ensures both durability and reduced weight. It includes a shaft diameter of Ø24 mm and supports voltage connection at 230/400 V. The motor has 6 poles and conforms to standard IEC dimensions. BCD is 115.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3A90S-6

Speed (RPM)

950

Rated output (kW)

0.75

Efficiency (% FL)

78.9

Voltage connection (Δ/Y)

230/400

Rated current at voltage

230/400

Nominal torque (Nm)

7.54

Start current ratio (IA/IN)

4.7

Mounting

B14

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The IP55-rated enclosure ensures protection against dust and water ingress.
High power output: With a power rating of 0.75kW, the motor delivers formidable performance.
Efficient rotation speed: The motor boasts a rotation speed of 950RPM, allowing for smooth and precise operation.
IE3 efficiency: Complying with the IE3 efficiency class, the motor maximizes energy usage and reducing operating costs.
Voltage compatibility: The Busck AC Motor can operate within a wide voltage range of 230/400V.
B14 flange: The motor is equipped with a B14 flange.
