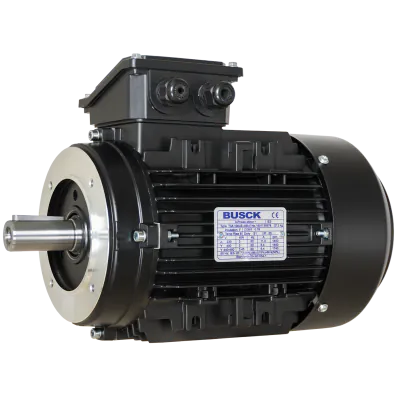

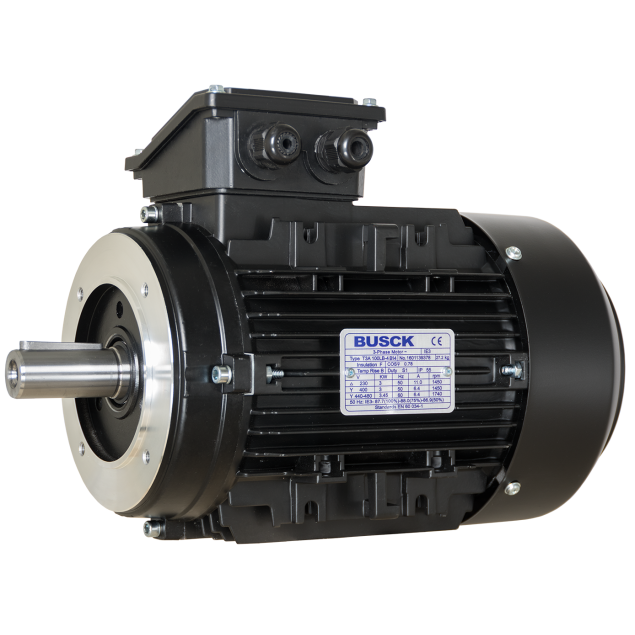

Busck AC motor T3A100LA-8, 0,75kW, 710RPM, B14, 230/400, 50 Hz, Aluminium

T3A100LA-8
Key specifications include a B14 mounting configuration, shaft diameter of Ø28 mm, and a bolt circle diameter (BCD) of 130 mm. The motor housing is made of aluminium for reduced weight, and it features 8 poles to support the lower operating speed. Designed for IEC frame size 100, it offers a voltage connection of 230/400 V and meets IP55 protection class for use in demanding environments.
€839.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • IP55 rating: Offers protection against dust and water, making it suitable for both indoor and outdoor installations.
  • High power output: Boasts a power rating of 0.75kW.
  • Optimal speed: Runs at 710RPM.
  • Voltage options: Compatible with both 230V and 400V power supply.
  • B14 flange: Equipped with a B14 flange, enabling easy installation and integration into existing systems.
  • IE3 efficiency: Meets IE3 efficiency standards.

Specifications:

  • Durable construction: Built with a sturdy aluminum frame.
  • Wide temperature range: -20°C to +40°C.

Specifications

IP classification
IP 55
Model
T3A100LA-8
Speed (RPM)
710
Rated output (kW)
0.75
Efficiency (% FL)
75
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.93/2.26
Nominal torque (Nm)
10.09
Start current ratio (IA/IN)
5.1
Mounting
B14
BCD
130
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO

Downloads

3dfile 3dfile step dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
20.00
Country of origin
CHN
