Busck AC motor T3A80A-2B5690V, 0,75kW, 2893RPM, B5, 400/690, 50 Hz, Aluminium

T3A80A-2B5690V

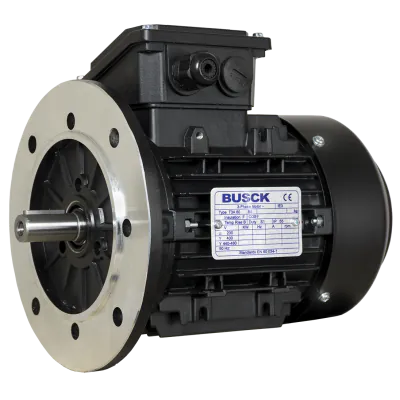

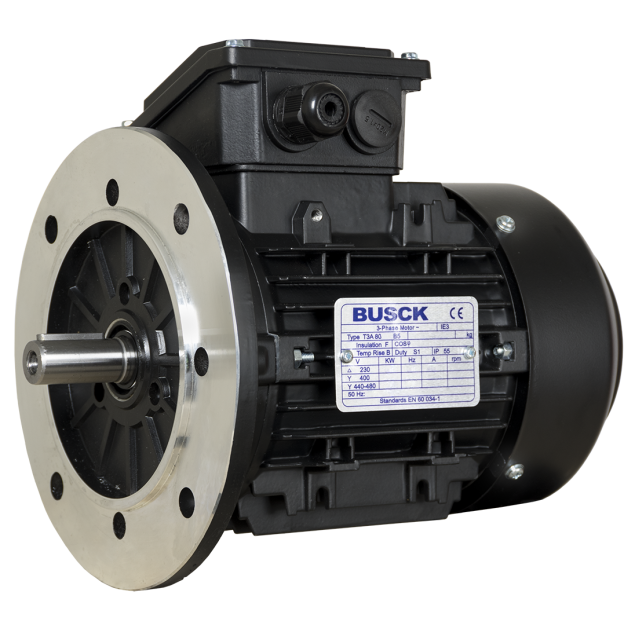

The Busck AC Motor T3A80A-2B5690V is a robust electric motor designed for industrial applications requiring reliability and efficiency. It features a rated power output of 0.75 kW and a rated speed of 2800 RPM, with a measured actual speed of 2893 RPM. Built with a durable aluminium housing, it is equipped with TEFC cooling and conforms to the IE3 efficiency standard. The motor adheres to IEC size 80, has 2 poles, and supports a B5 mounting configuration. It is fitted with a shaft diameter of Ø19 mm and has a Bolt Circle Diameter (BCD) of 165 mm. The motor is IP55 rated and supports a voltage connection of 400/690 V.

€322.00

Excluded taxes and delivery costs

In stock

Expected shipment:

Estimated Shipping:

Description

Key features:

IP55 rating: With an IP55 rating, the motor is well-protected against dust and water ingress, making it suitable for operation in challenging conditions.
High power output: The Busck motor boasts a formidable 0.75kW power rating, enabling it to tackle heavy-duty tasks with efficiency and reliability.
High speed performance: At 2893RPM, the motor delivers precise and consistent performance, crucial for applications requiring constant speed control.
Wide voltage range: The motor operates seamlessly within a voltage range of 400/690V, offering compatibility with different power supply systems.
B5 flange: The B5 flange design ensures easy and secure mounting, simplifying integration into various equipment and machinery configurations.
IE3-81.3 efficiency: This motor adheres to the high IE3 efficiency class, minimizing energy wastage and contributing to cost savings and reduced environmental impact.

Specifications:

Aluminum construction: The motor's aluminum body ensures a lightweight design without compromising on strength and durability, allowing for easy installation and reduced maintenance efforts.
Temperature resilience: Designed to withstand extreme temperature variations, the motor operates flawlessly in a broad temperature range from -20°C to +40°C.
