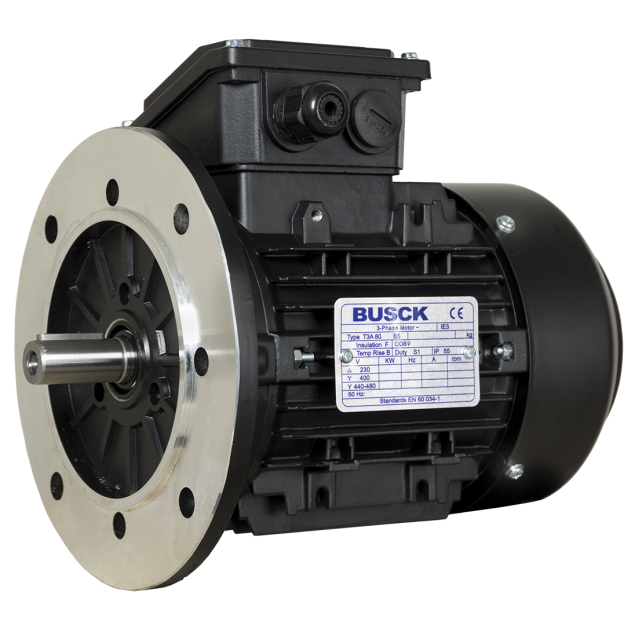

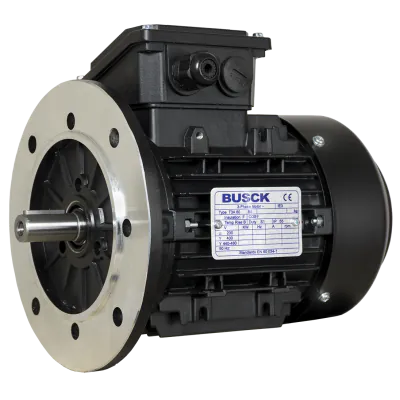

Busck AC motor T3A80A-2B5500V 0.75kW 2893RPM 500V 50Hz, aluminium
T3A80A-2B5500VThe Busck AC motor is a powerful and durable electric motor designed to excel under the most demanding conditions. Crafted with high-quality materials and precision engineering, this motor is built to withstand harsh environments and deliver exceptional performance. Whether for industrial applications or heavy-duty tasks, the Busck AC motor is your reliable choice.
Specifications
Product description
Downloads
€320.91
In stock
Expected shipment: 04-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3A80A-2B5500V
Speed (RPM)
2893
Rated output (kW)
0.75
Efficiency (% FL)
81.3
Voltage connection (Δ/Y)
500
Rated current at voltage
1.4
Nominal torque (Nm)
2.5
Start current ratio (IA/IN)
7.3
Mounting
B5
IEC norm
80
BCD
165
Poles
2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Description
Key features:
- IP55 rating: Provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power output: Boasting a 0.75kW power rating, this motor delivers impressive performance for various applications.
- High speed: The motor's 2893RPM speed ensures efficient operation in a wide range of tasks.
- Voltage and flange type: The motor operates at 500V and features a B5 flange, ensuring seamless integration into your system.
- Energy-efficient: With an IE3-81.3 efficiency class, this motor helps reduce energy consumption and operating costs.
Specifications:
- Robust construction: Built with a sturdy aluminum body, ensuring long-lasting durability and resistance to wear and tear.
- Wide temperature range: Capable of operating in temperatures ranging from -20°C to +40°C, ensuring adaptability to various environments.
