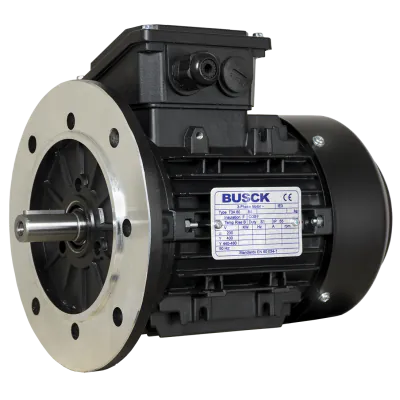

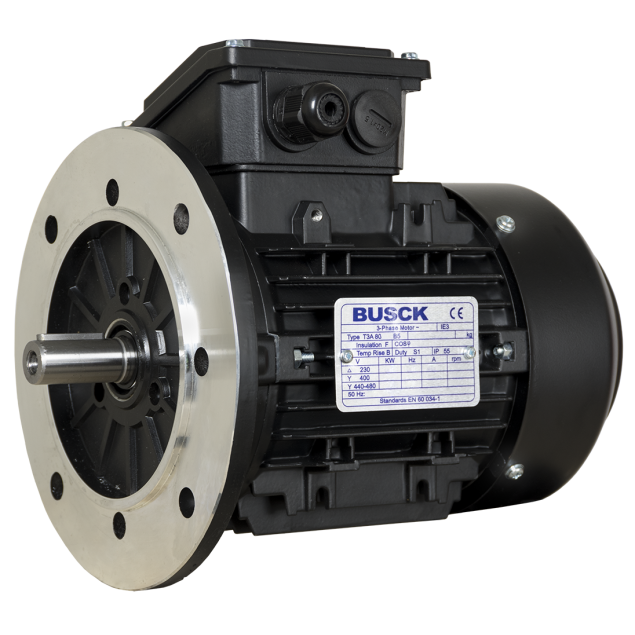

Busck AC motor T3A80A-2B5A22, 0.75kW, 2890RPM, 230/400V, 50Hz, ATEX 22, aluminium
T3A80A-2B5A22The Busck AC Motor with ATEX certification is a durable and versatile electric motor designed to excel in challenging environments. With its robust construction and ATEX 22 certification, this motor is well-equipped to withstand harsh demands in hazardous areas, making it ideal for various industrial applications.
Specifications
Product description
Downloads
€336.00
Made to order
Expected shipment: 07-04-2025
More Information
IP classification
IP 65
Model
T3A80A-2B5A22
Speed (RPM)
2890
Rated output (kW)
0.75
Efficiency (% FL)
80.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.89/1.66
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
7.4
Mounting
B5
IEC norm
80
BCD
100
Poles
2
Certifications
ATEX 2-22
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP65 rating: Boasting an IP65 rating, the motor is effectively protected against dust and water ingress, enhancing its durability and reliability in harsh conditions.
- ATEX 22 certified: Verifies that the motors adhere to the safety standards, as demonstrated by their compliance with ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 certifications.
- High performance: Delivering 0.75kW of power and operating at 2890RPM, the motor offers efficient performance.
- Voltage options: It is adaptable to multiple power sources with a voltage rating of 230/400V.
- B5 flange mount: The B5 flange mount allows for straightforward integration into existing systems.
- High efficiency: Boasting an IE3 efficiency rating, this motor ensures energy savings and reduced operating costs.
Specifications:
- Aluminum build: The motor has a aluminum construction.
- Wide temperature range: -20°C to +40°C.
