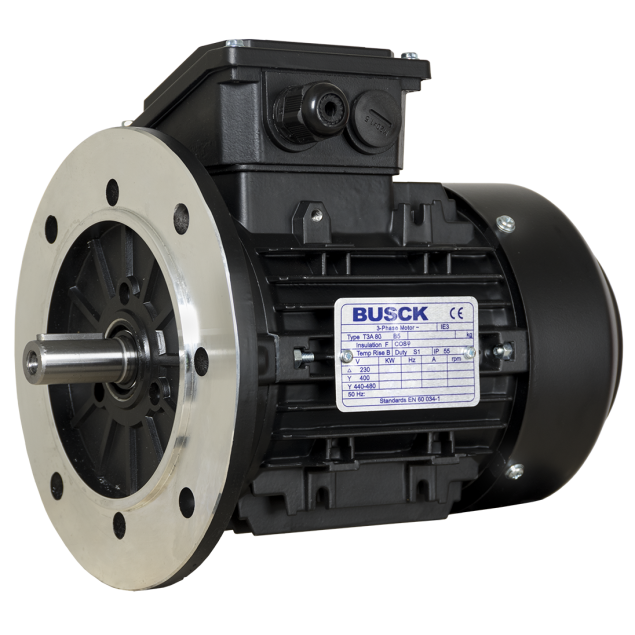

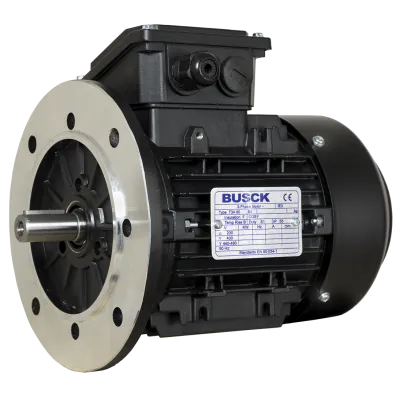

Busck AC motor T3A80A-2B5, 0.75kW, 2890RPM, 230/400V, 50Hz, aluminium
T3A80A-2B5The Busck AC motor is a versatile and durable three-phase synchronous motor, designed to meet the demanding requirements of various applications. Crafted with precision and reliability in mind, this motor guarantees outstanding performance even under harsh conditions.
Specifications
Product description
Downloads
€313.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 55
Model
T3A80A-2B5
Speed (RPM)
2890
Rated output (kW)
0.75
Efficiency (% FL)
80.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.89/1.66
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
7.4
Mounting
B5
IEC norm
80
BCD
100
Poles
2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: Provides excellent protection against dust and water ingress, making it suitable for various environments.
- High power output: Boasts a 0.75kW power rating, delivering reliable and consistent performance.
- Fast rotation speed: With an impressive 2893RPM speed, this motor ensures efficient operation in various industrial settings.
- Dual voltage capability: Supports operating at 230V or 400V, providing flexibility in different power supply environments.
- B5 flange: Features a B5 flange, enabling easy and secure mounting on compatible equipment.
- High efficiency: IE3-80.7 efficiency rating ensures reduced energy consumption and environmental impact.
Specifications:
- Robust build: Built with high-quality aluminium materials, ensuring sturdiness and longevity.
- Wide temperature range: Can operate effectively within a temperature range of -20°C to +40°C, suitable for diverse climates and applications.
