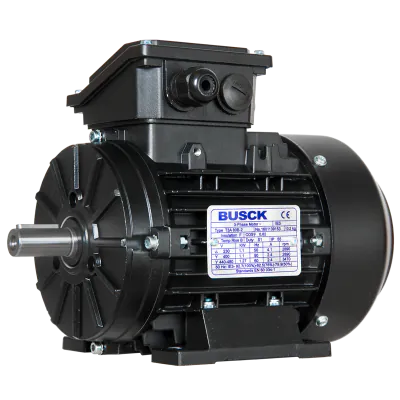

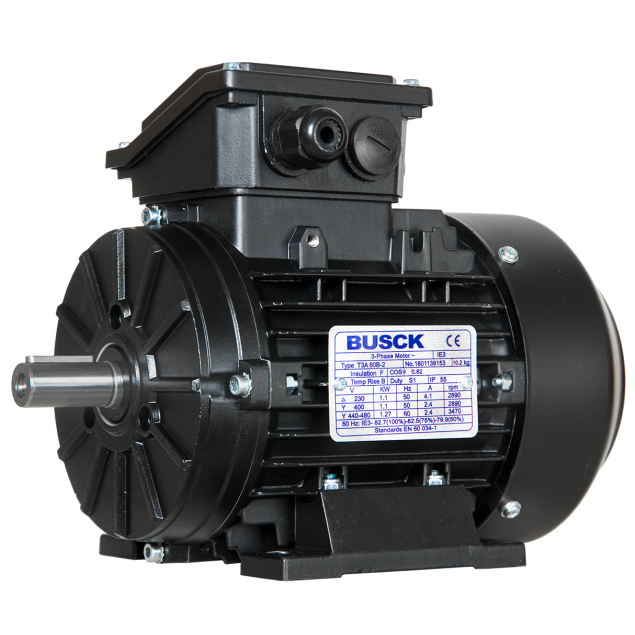

Busck AC motor T3A80A-2B3, 0.75kW, 2890RPM, 230/400V, 50Hz, aluminium
T3A80A-2B3The Busck AC motor is a high-performance three-phase synchronous motor, designed to endure and excel in the most demanding industrial applications. With its robust build and flexible design, it delivers reliable and efficient performance in a wide range of environments.
Specifications
Product description
Downloads
€313.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T3A80A-2B3
Speed (RPM)
2890
Rated output (kW)
0.75
Efficiency (% FL)
80.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.89/1.66
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
7.4
Mounting
B3
IEC norm
80
Poles
2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water ingress, making it suitable for both indoor and outdoor installations.
- Powerful performance: The motor is rated at 0.75kW, delivering impressive power for various applications.
- High speed: Operating at 2890RPM, the motor provides efficient speed control and ensures smooth operation.
- Voltage flexibility: Designed to handle varying power inputs, the motor operates at both 230V and 400V, catering to different power supply configurations.
- B3 flange: The B3 flange design allows for easy and versatile mounting options, making it compatible with diverse machinery setups.
- IE3-80.7 efficiency class: The motor is built with energy efficiency in mind, complying with the high-performance IE3-80.7 efficiency class.
Specifications:
- Aluminium construction: The motor boasts a sturdy aluminium construction, ensuring durability and lightweight characteristics for easy installation and handling.
- Wide temperature range: Capable of operating in extreme temperatures, from -20°C to +40°C, the motor thrives in diverse climates.
