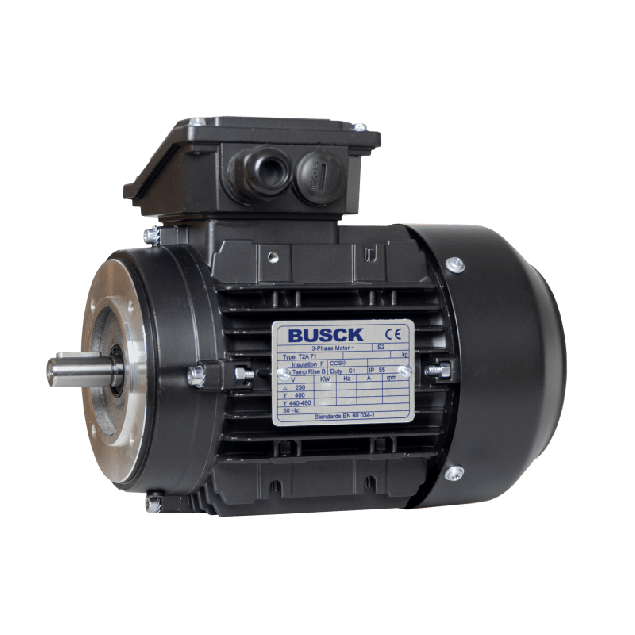

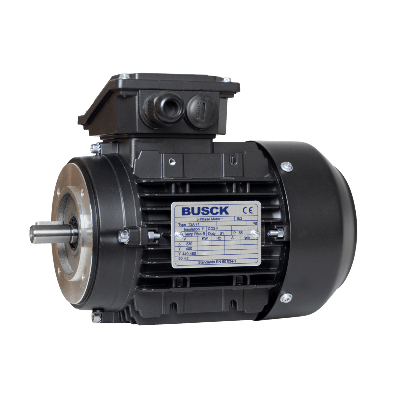

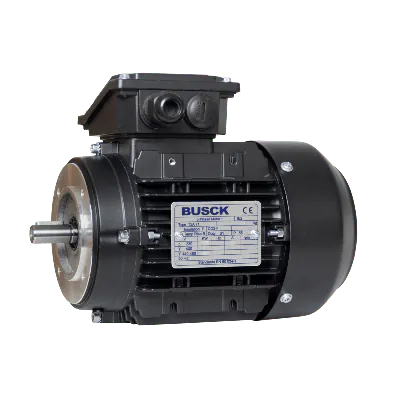

Busck AC motor T3A71C-2, 0,75kW, 2800RPM, B14, 230/400, 50 Hz, Aluminium
T3A71C-2The Busck T3A71C-2 is a compact, high-speed IEC-standard AC motor rated at 0.75 kW, operating at 2800 RPM (2-pole). Its aluminium housing offers a lightweight and corrosion-resistant solution for general-purpose industrial applications that require rapid acceleration and precise speed control.
This motor features Totally Enclosed Fan Cooled (TEFC) construction, IP55 ingress protection, and PTO thermal protection. It is equipped with a B14 flange (Ø85 mm BCD) and a Ø14 mm shaft, making it easy to integrate into compact assemblies. With a starting torque of 3.0 Nm, pull-out torque of 3.2 Nm, and IE3 energy efficiency (80.7%), it offers reliable performance with low energy loss.
Typical applications:
-
Pumps and ventilators
-
Packaging and sorting equipment
-
Compact machinery requiring quick starts
-
Conveyor and drive units in automation systems
Made to order
Expected shipment:
More Information
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is highly resistant to dust and water ingress, safeguarding against environmental elements.
- 0.75kW power output: The motor delivers a formidable power output of 0.75kW, offering ample torque for diverse applications.
- High speeds at 2870RPM: Operating at a rapid speed of 2870 revolutions per minute, it optimizes efficiency and productivity.
- Voltage versatility: Designed to operate on 230/400V power supply, providing flexibility in various electrical setups.
- B14 flange mounting: The B14 flange allows for easy and secure mounting, ensuring a stable connection to the machinery.
- IE3 efficiency class: Complying with the IE3 efficiency standard, this motor ensures energy savings and environmental responsibility.
Specifications:
- Aluminium construction: The motor's durable aluminium build ensures both strength and lightweight, making it suitable for various industrial setups.
- Wide temperature range: -20°C to +40°C.
