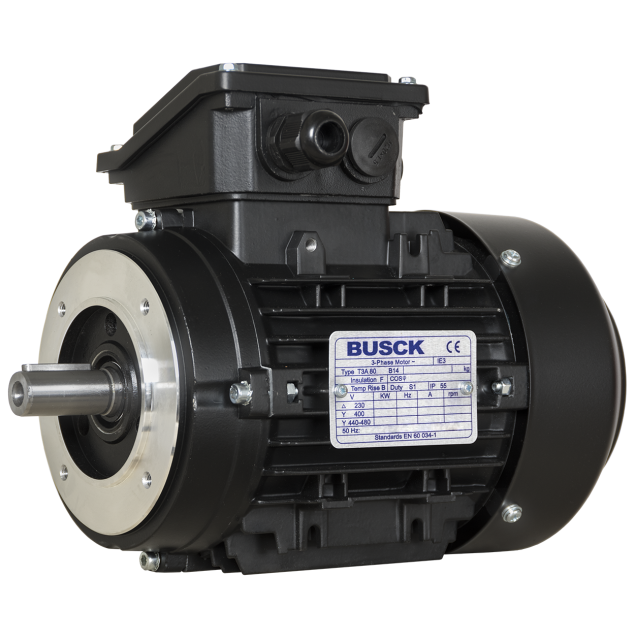

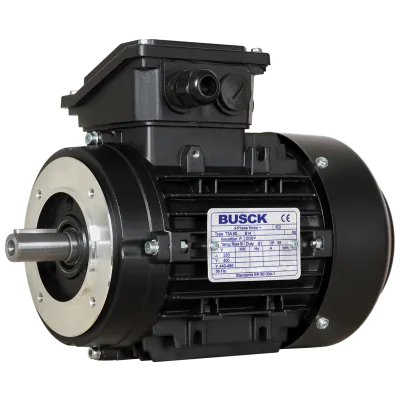

Busck AC motor T3A80B-4500V, 0,75kW, 1438RPM, B14, 500/575, 50 Hz, Aluminium

T3A80B-4500V

The Busck AC Motor T3A80B-4500V is a compact and reliable electric motor designed for industrial applications. It delivers a rated output of 0.75 kW and a rated speed of 1400 RPM, with a maximum speed of 1438 RPM. Built in accordance with the IEC 80 standard, this motor features a 4-pole design and a shaft diameter of Ø19 mm. It is cooled by a Totally Enclosed Fan Cooled (TEFC) system and meets the IE3 efficiency class. Constructed from aluminum, it supports a B14 flange mounting and operates on a 500/575 V supply at 50 Hz. The housing meets IP55 protection standards, and the bolt circle diameter (BCD) is 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80B-4500V

Speed (RPM)

1438

Rated output (kW)

0.75

Efficiency (% FL)

82.8

Voltage connection (Δ/Y)

500/575

Rated current at voltage

1.5/1.5

Nominal torque (Nm)

Start current ratio (IA/IN)

4.7

Mounting

B14

BCD

100

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor is dust and water-resistant with an IP55 rating, offering reliable protection against environmental elements.
High power output: With a power rating of 0.75kW, this motor delivers efficient and consistent performance.
Optimal speed: Operating at 1438RPM, the motor provides a balanced combination of power and speed for enhanced efficiency.
High voltage: The motor is designed to handle 500V, enabling it to tackle demanding tasks with ease.
B14 flange: The B14 flange allows for easy installation and compatibility with various equipment and systems.
IE3 efficiency: This motor boasts an IE3 efficiency rating, ensuring reduced energy consumption and lower operating costs.
