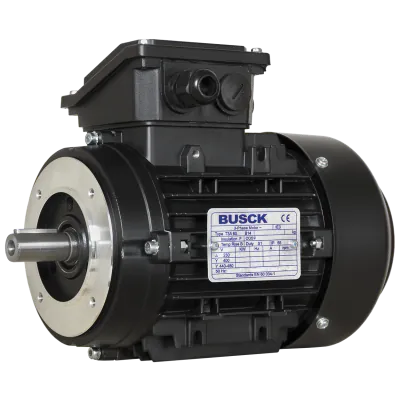

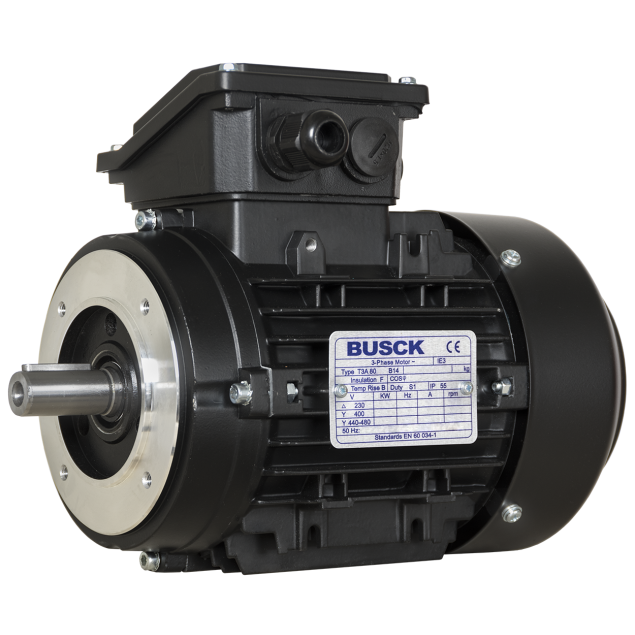

Busck AC motor T3A80B-4690V, 0,75kW, 1438RPM, B14, 400/690, 50 Hz, Aluminium

T3A80B-4690V

The Busck AC Motor T3A80B-4690V is a compact and reliable three-phase electric motor designed for industrial applications. It delivers a rated output of 0.75 kW and operates at a speed of 1438 RPM. The motor features a B14 mounting configuration and conforms to the IEC 80 specification. Built from aluminium, it offers effective heat dissipation and reduced weight. The motor is TEFC cooled (Totally Enclosed Fan Cooled) and has a shaft diameter of Ø19 mm. It complies with the IE3 efficiency standard and has an IP55 protection class, making it suitable for environments requiring dust and water resistance. Voltage connection is 400/690 V, and the design includes 4 poles for stable performance.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80B-4690V

Speed (RPM)

1438

Rated output (kW)

0.75

Efficiency (% FL)

82.8

Voltage connection (Δ/Y)

400/690

Rated current at voltage

1.9/1.09

Nominal torque (Nm)

Start current ratio (IA/IN)

6.2

Mounting

B14

BCD

100

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

Weatherproof design: Boasting an IP55 rating, this motor is protected against dust ingress and low-pressure water jets.
High power output: With a power rating of 0.75kW, the Busck motor delivers ample power to tackle a wide range of tasks.
Optimal speed: Operating at 1438RPM, the motor strikes a balance between speed and torque.
Wide voltage range: The motor can handle voltages of 400V or 690V, offering flexibility in various electrical setups.
Versatile mounting: Featuring a B14 flange, the motor can be easily mounted and integrated into different systems.
High efficiency: Rated as IE3, this motor meets stringent efficiency standards, reducing energy consumption and operating costs.
