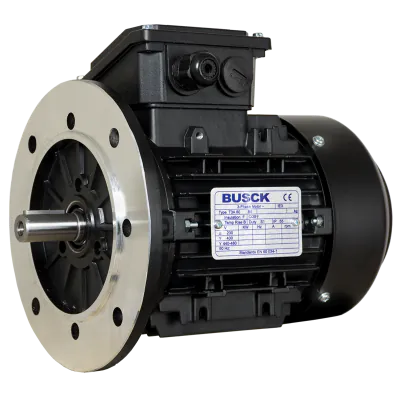

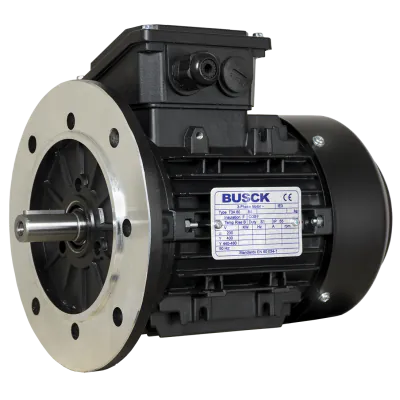

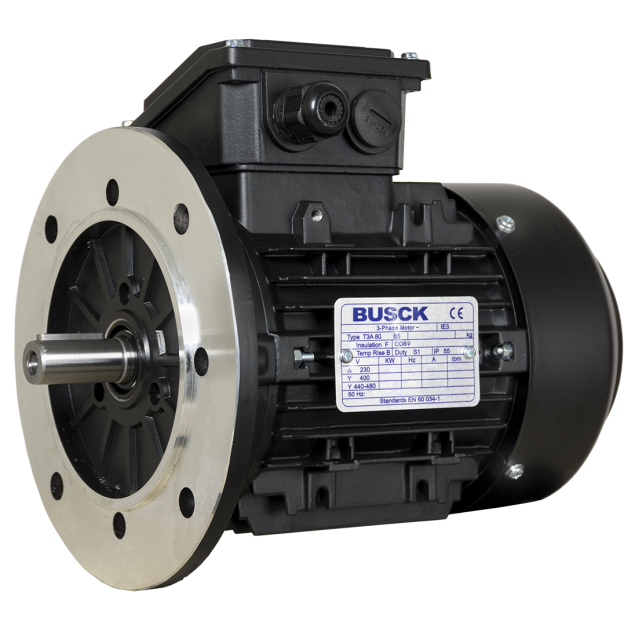

Busck AC motor T3A80B-4B5, 0,75kW, 1430RPM, B5, 230/400, 50 Hz, Aluminium

T3A80B-4B5

The Busck AC Motor T3A80B-4B5 is a robust electric motor designed for industrial applications. It features a rated power output of 0.75 kW and a speed of 1430 RPM, complying with the IE3 efficiency standard. The motor has a B5 mounting configuration and a shaft diameter of Ø19 mm. It operates on a 230/400V connection at 50 Hz and follows the IEC 80 frame size standard. With 4 poles and TEFC (Totally Enclosed Fan Cooled) cooling, it is suitable for demanding environments. The motor housing is made of aluminium for low weight and durability, and it has an IP55 protection rating. The bolt circle diameter is 165 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3A80B-4B5

Speed (RPM)

1430

Rated output (kW)

0.75

Efficiency (% FL)

82.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

3.13/1.8

Nominal torque (Nm)

4.97

Start current ratio (IA/IN)

6.3

Mounting

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

Robust build: Crafted to withstand the harshest demands, the Busck AC motor boasts a sturdy construction that ensures durability and longevity.
High efficiency: The motor's IE3 efficiency rating guarantees optimal energy utilization, leading to cost savings and reduced environmental impact
IP55 rating: This motor carries an IP55 rating, making it dust and water-resistant, ideal for various industrial and outdoor applications.
