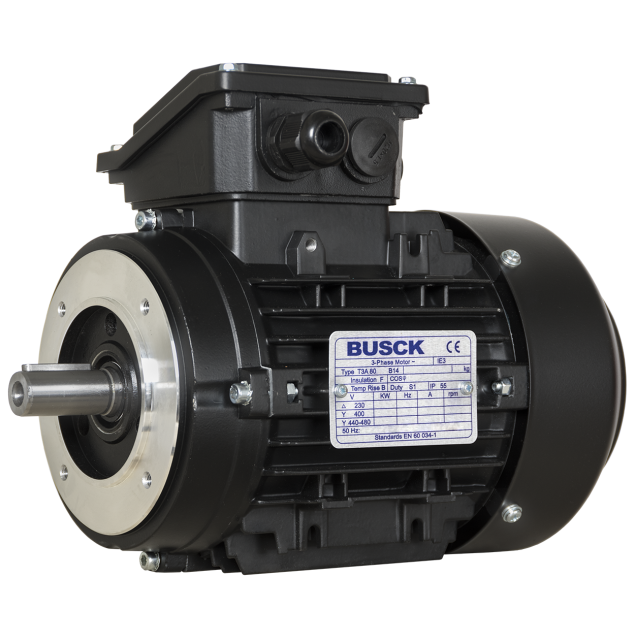

Busck AC motor T3A80B-4A22, 0.75kW, 1430RPM, 230/400V, 50Hz, ATEX 22, aluminium
T3A80B-4A22The Busck AC Motor T3A80B-4A22 is a robust and reliable electric motor designed for industrial applications. It offers a rated output of 0.75 kW and operates at a speed of 1430 RPM. The motor complies with the IE3 efficiency standard and IEC 80 norm, with a shaft diameter of Ø19 mm. It features 4 poles and supports a voltage connection of 230/400 V, 50 Hz. The mounting configuration is B14, and the cooling type is TEFC (Totally Enclosed Fan Cooled). Encased in aluminium housing, the motor adheres to IP65 protection class. It is ATEX 2-22 certified, making it suitable for use in hazardous areas.
Specifications
Product description
Downloads
€397.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP 65
Model
T3A80B-4A22
Speed (RPM)
1430
Rated output (kW)
0.75
Efficiency (% FL)
82.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.13/1.8
Nominal torque (Nm)
4.97
Start current ratio (IA/IN)
6.3
Mounting
B14
BCD
100
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
HS-Code
85015100.000000
Description
Key features:
- ATEX 22 certified: Guarantees compliance with the stringent safety standards of ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2.
- IP65 rating: Dust-tight and protected against water jets, making it suitable for tough industrial settings.
- B14 flange: Offers easy and secure mounting, providing a stable connection to various equipment.
- High efficiency: Boasts an IE3 energy efficiency rating, reducing energy consumption and operating costs.
Specifications:
- Robust build: Made with aluminum materials.
- Wide temperature range: From -20°C to +40°C.
