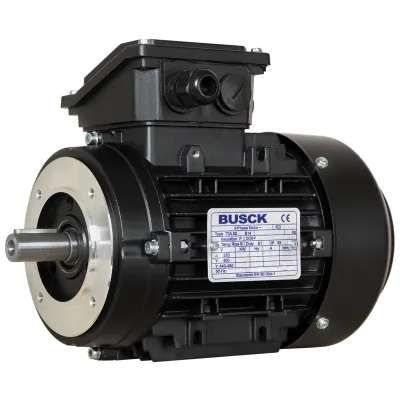

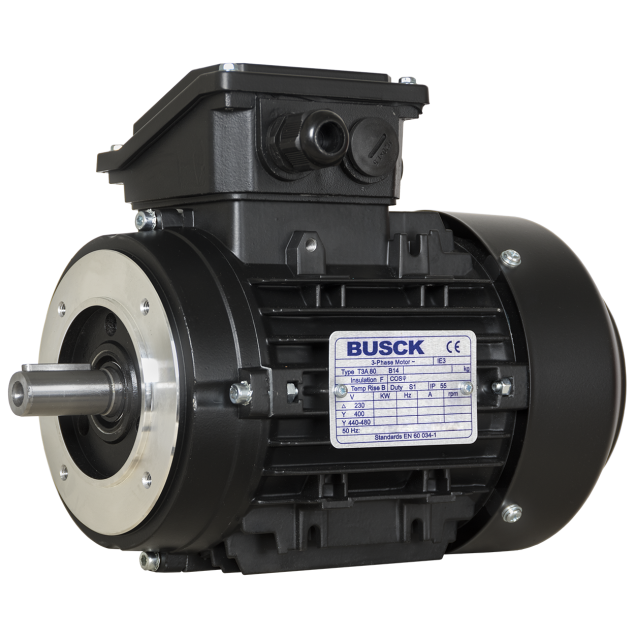

Busck AC motor T3A80B-4, 0,75kW, 1430RPM, B14, 230/400, 50 Hz, Aluminium
T3A80B-4The T3A80B-4 electric motor is engineered to deliver reliable performance and high efficiency in demanding industrial environments. With a rated power of 0.75 kW, it operates at 1430 RPM and achieves an impressive efficiency of 82.5% (IE3), ensuring energy savings and reduced operational costs.
Designed with a B14 mounting flange and a BCD of 100, it provides straightforward integration into compact machine assemblies. The motor features a 4-pole design, delivering a nominal torque of 4.97 Nm, and is protected by an IP55 enclosure, safeguarding against dust ingress and water jets.
Electrical flexibility is assured with its 230/400V Δ/Y connection, supporting common low and high voltage supply networks. It draws a nominal current of 3.13/1.8 A and has a robust starting current ratio (IA/IN) of 6.3, facilitating reliable startup under load.
The motor is equipped with TEFC (Totally Enclosed Fan Cooled) cooling, maintaining optimal operating temperatures even under continuous duty. Its Ø19 mm shaft diameter supports a wide range of coupling options, making it a versatile choice for automated machinery and industrial drive systems.
In stock
Expected shipment:
More Information
Description
Key features:
- IP55 rating: Provides protection against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power: Boasts a 0.75kW output, delivering consistent and efficient performance.
- Optimal speed: Operates at 1430RPM, striking a balance between power and speed for versatile applications.
- Voltage options: Compatible with both 230V and 400V power supplies, offering flexibility in electrical setups.
- B14 flange: Designed with a B14 flange for easy installation and compatibility with various equipment.
- High-efficiency: IE3 efficiency rating, ensuring minimal energy loss during operation.
Specifications:
- Robust build: Constructed with aluminum.
- Wide temperature range: -20°C to +40°C.
