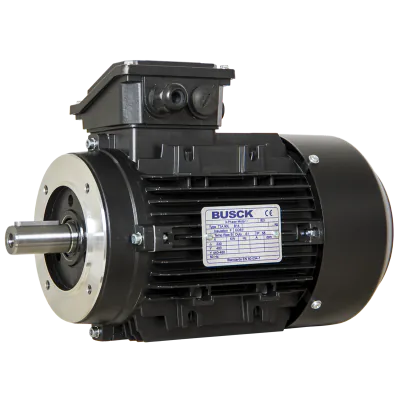

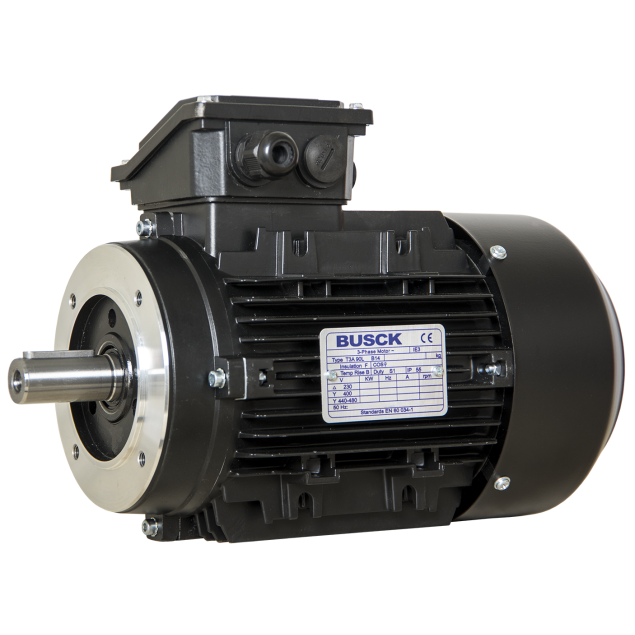

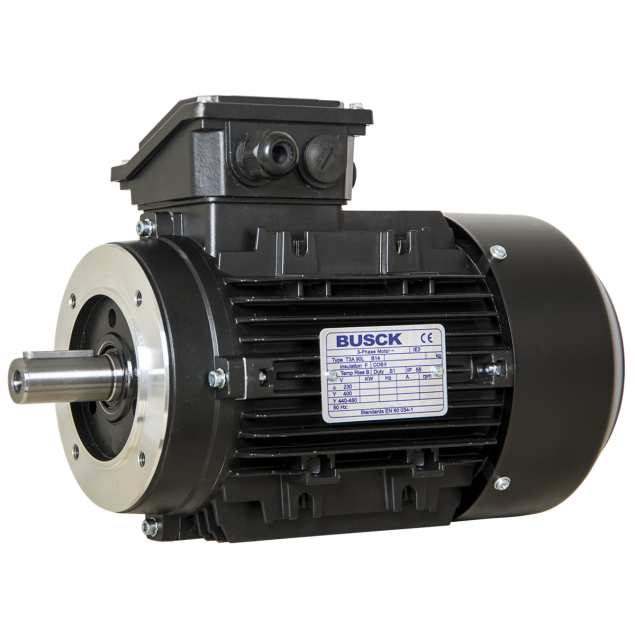

Busck AC motor T2A90L-8, 0.55kW, 705RPM, 230/400V, 50Hz, aluminium
T2A90L-8The Busck AC motor is a three-phase synchronous motor designed to excel in demanding industrial environments. With its durable construction and impressive performance attributes, this motor is the ideal solution for various applications that require reliability and efficiency.
Specifications
Product description
Downloads
€564.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 55
Model
T2A90L-8
Speed (RPM)
705
Rated output (kW)
0.55
Efficiency (% FL)
65
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.67/2.11
Nominal torque (Nm)
7.45
Start current ratio (IA/IN)
3.4
Mounting
B14
IEC norm
90
BCD
115
Poles
8
Efficiency standard
IE2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
None
Description
Key features:
- IP55 rating: Equipped with an IP55 rating, the motor is well-protected against dust and water, making it suitable for use in challenging conditions.
- High power output: Boasting a power rating of 0.55kW.
- Optimal speed: The motor operates at 705RPM.
- Energy-efficient: Compliant with IE2 230/400V efficiency standards, this motor ensures reduced energy consumption.
- B14 flange: The B14 flange design facilitates easy installation and integration into existing systems.
Specifications:
- Robust build: The motor's construction features aluminum components.
- Wide temperature range: -20°C to +40°C.
