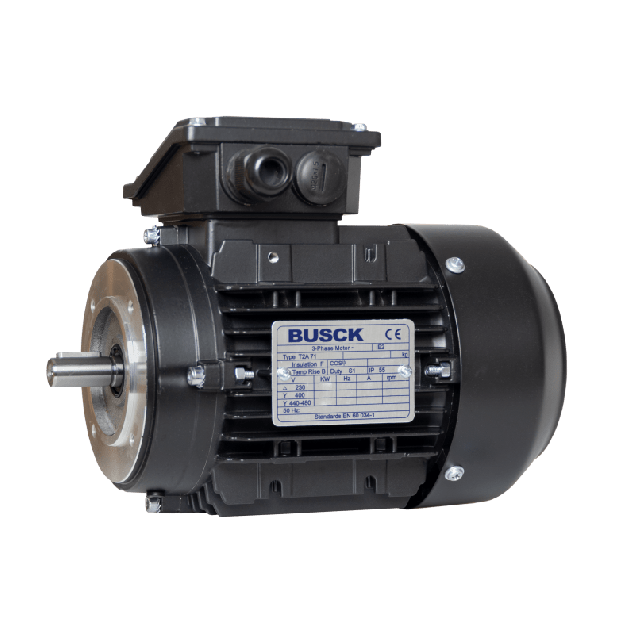

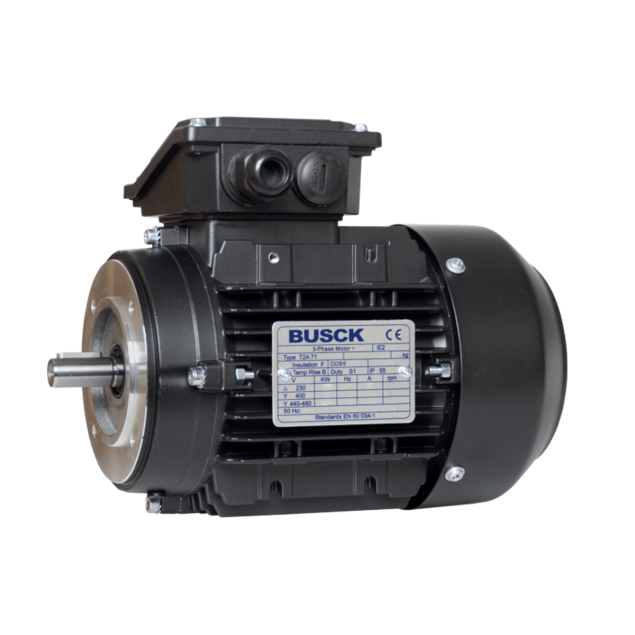

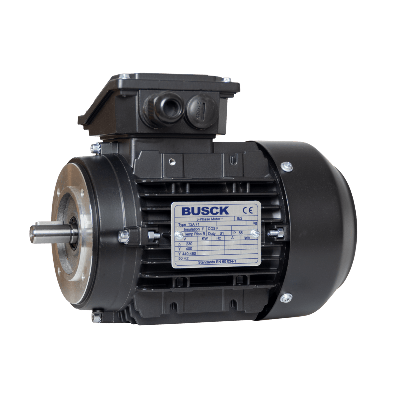

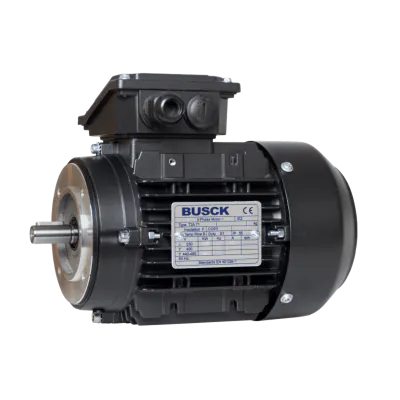

Busck AC motor T2A71B-2, 0,55kW, 2860RPM, B14, 230/400, 50 Hz, Aluminium

T2A71B-2

The Busck AC Motor T2A71B-2 is a reliable electric motor designed for industrial applications where compactness and efficiency are required. It features a rated output of 0.55 kW and operates at a rated speed of 2800 RPM with a maximum speed of 2860 RPM. The motor complies with the IE2 efficiency standard and is built to IEC frame size 71. It uses B14 mounting and has a shaft diameter of Ø14 mm along with a bolt circle diameter (BCD) of 85 mm. The aluminium housing and TEFC (Totally Enclosed Fan Cooled) design ensure operational durability, while the IP55 protection class offers resistance to dust and water. It supports a voltage connection of 230/400V at 50 Hz frequency.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71B-2

Speed (RPM)

2860

Rated output (kW)

0.55

Efficiency (% FL)

75.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.21/1.27

Nominal torque (Nm)

1.84

Start current ratio (IA/IN)

2.3

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: Provides protection against dust and water ingress, enhancing motor durability and safety.
High power output: Boasts a powerful 0.55kW motor, delivering impressive performance for a wide range of applications.
High speed: Operates at a rapid 2860RPM, optimizing efficiency and productivity.
Voltage flexibility: Compatible with 230/400V power supply, providing adaptability to different electrical systems.
B14 flange: The motor is equipped with a B14 flange, ensuring easy installation and integration into various equipment setups.
High efficiency: IE2-75.1 efficiency rating, promoting energy savings and reduced operational costs.

Specifications:

Robust construction: Built with high-quality aluminum materials, ensuring sturdiness and longevity.
Wide temperature range: Capable of functioning reliably in temperatures ranging from -20°C to +40°C, making it suitable for diverse environments.
