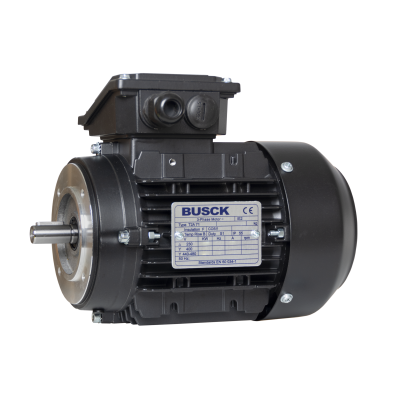

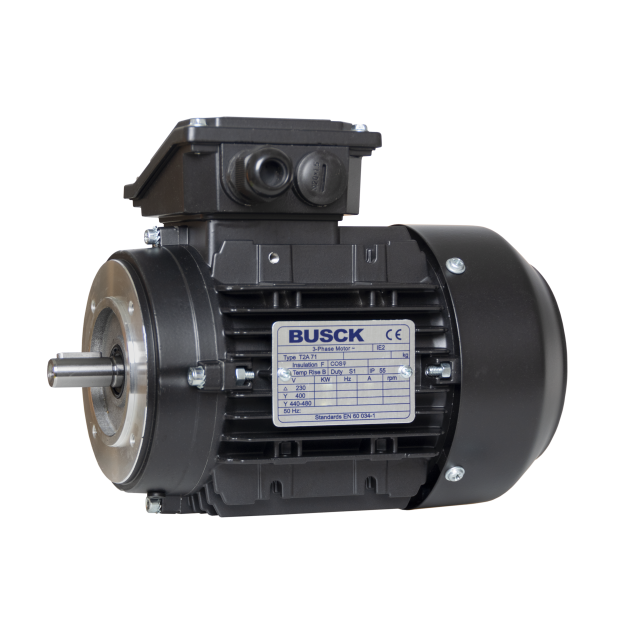

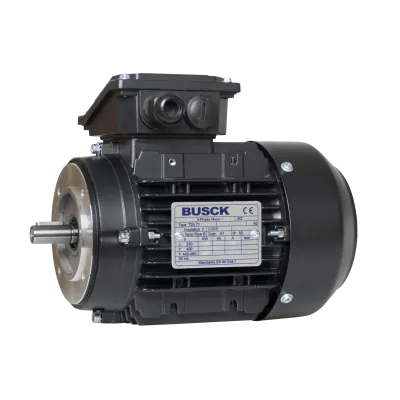

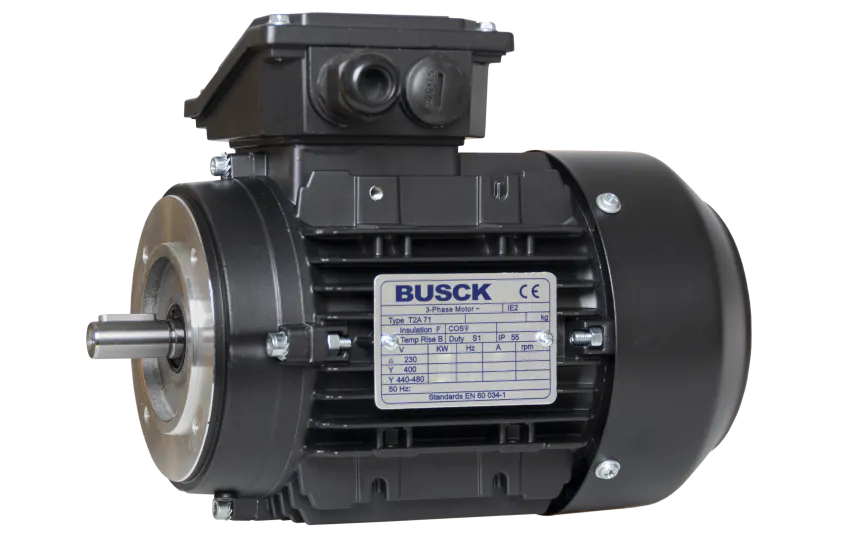

Busck AC motor T4A80A-4, 0,55kW, 1440RPM, B14, 230/400, 50 Hz, Aluminium

T4A80A-4

The Busck AC Motor T4A80A-4 is a robust and energy-efficient electric motor designed for industrial applications. This model delivers a rated output of 0.55 kW at a rated speed of 1400 RPM and a maximum speed of 1440 RPM. It features 4 poles and a voltage connection of 230/400 V, operating at 50 Hz. Built according to the IEC 80 norm, it offers IE4 efficiency standard and a shaft diameter of Ø19 mm. The motor is constructed with a durable aluminium housing and TEFC cooling, ensuring optimal thermal management. With a B14 mounting type, BCD of 100 mm, and IP55 protection class, it is suitable for demanding environments. Manufacturer: Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T4A80A-4

Speed (RPM)

1440

Rated output (kW)

0.55

Efficiency (% FL)

83.9

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.45/1.41

Nominal torque (Nm)

3.8003

Start current ratio (IA/IN)

6.8

Mounting

B14

BCD

100

Poles

Efficiency standard

IE4

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, providing protection against dust and water ingress, making it suitable for both indoor and outdoor environments.
High power output: With a power output of 0.55kW, this motor delivers consistent and efficient performance in demanding applications.
Optimal speed: The motor operates at a speed of 1440RPM, offering precise control and smooth operation in various industrial processes.
Versatile voltage: Designed to accommodate different power supplies, the motor can work efficiently with 230/400V input.
B14 flange: Featuring a B14 flange, the motor allows for easy mounting and integration into various equipment setups.
High energy efficiency: The motor meets IE4 efficiency standards, ensuring minimized energy consumption and reduced operational costs.

Specifications:
