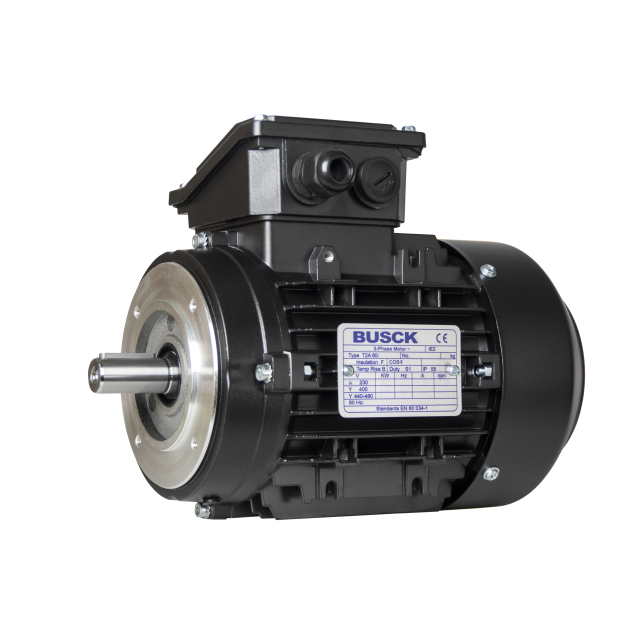

Busck AC motor T2A80A-4A22, 0.55kW, 1420RPM, 230/400V, 50Hz, ATEX 22, aluminium
T2A80A-4A22The Busck AC motor with ATEX certification is a robust and flexible high-performance motor, specifically designed to endure the harsh demands in industrial environments. With its reliable build and features, this motor ensures optimal performance and safety in hazardous areas.
Specifications
Product description
Downloads
€316.09
In stock
Expected shipment: 20-01-2025
More Information
IP classification
IP 65
Producer
Busck
Model
T2A80A-4A22
Speed (RPM)
1420
Rated output (kW)
0.55
Efficiency (% FL)
77.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.56/1.47½
Nominal torque (Nm)
3.7
Start current ratio (IA/IN)
5.4
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Certifications
ATEX 2-22
Efficiency standard
IE2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP65 rating: This motor boasts an IP65 rating, safeguarding it against dust ingress and low-pressure water jets.
- ATEX 22 certified: Ensures compliance with the safety standards of ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2.
- 0.55kW power: With a power output of 0.55kW, this motor delivers consistent and efficient performance.
- 1420RPM speed: The motor operates at a precise speed of 1420 revolutions per minute.
- 230/400V voltage: It supports a dual voltage system of 230V and 400V.
- B14 flange: The B14 flange design allows for easy and secure mounting.
- IE2 efficiency: The motor meets IE2 efficiency standards, reducing energy consumption and promoting cost-effectiveness.
Specifications:
- Aluminum build: The motor is constructed using aluminum materials.
- Temperature range: -20°C to +40°C.
