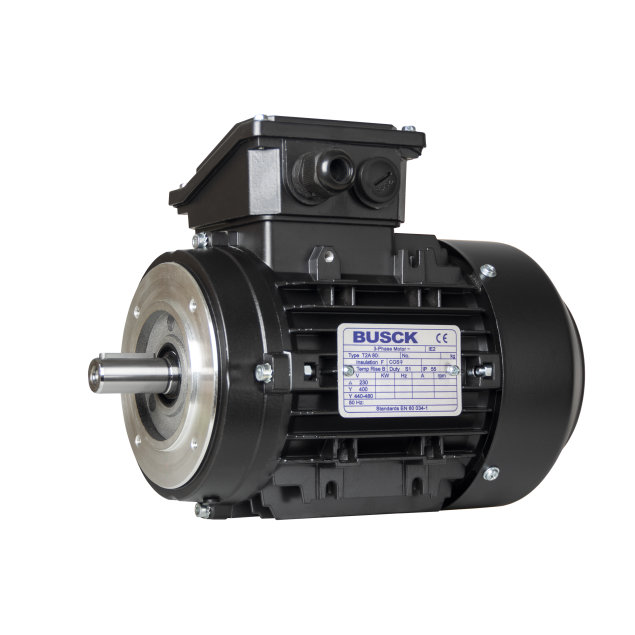

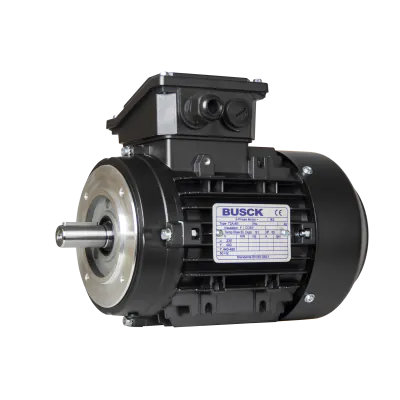

Busck AC motor T2A80A-4, 0.55kW, 1420RPM, 230/400V, 50Hz, aluminium
T2A80A-4The Busck AC motor is a, high-performance three-phase synchronous motor designed to meet the demanding industrial requirements. With its robust construction and flexible capabilities, this motor is built to excel in various applications, offering reliable and efficient performance in even harsh environments.
Specifications
Product description
Downloads
€316.17
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T2A80A-4
Speed (RPM)
1420
Rated output (kW)
0.55
Efficiency (% FL)
77.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.56/1.47
Nominal torque (Nm)
3.7
Start current ratio (IA/IN)
5.4
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Efficiency standard
IE2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
None
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-guarded against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power output: Boasting an 0.55kW power rating, this motor delivers performance.
- Speed and efficiency: The motor operates at 1420RPM, striking the balance between speed and efficiency-
- Voltage flexibility: Designed to accommodate different power requirements, the motor can be powered at 230V or 400V.
- B14 flange mounting: The motor comes with a B14 flange, simplifying installation and ensuring a secure and stable mounting connection.
- IE2 efficiency class: Complying with IE2 efficiency standards, this motor offers energy savings.
Specifications:
- Durable aluminum construction: The motor i build with a aluminum body.
- Wide temperature range: -20°C to +40°C.
