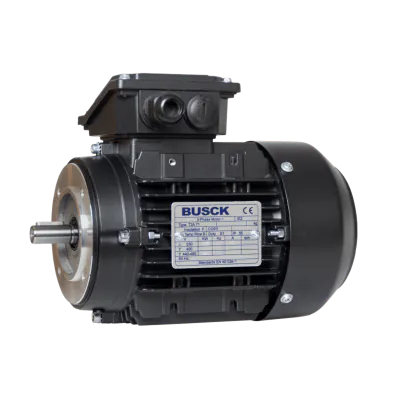

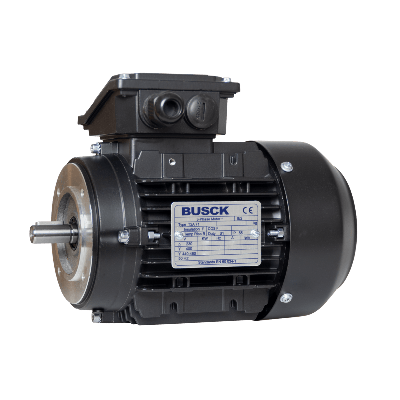

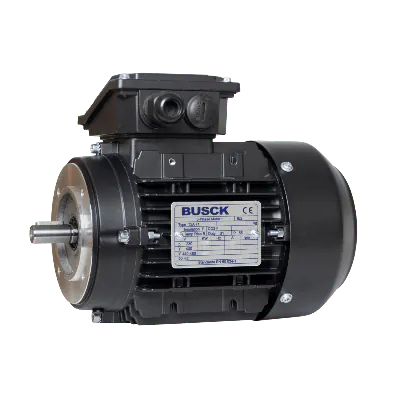

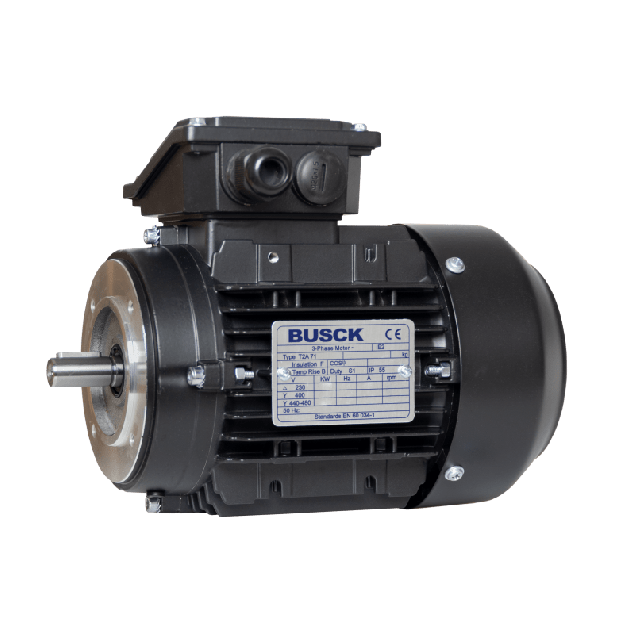

Busck AC motor T2A71C-4, 0,55kW, 1395RPM, B14, 230/400, 50 Hz, Aluminium

T2A71C-4

The Busck AC Motor T2A71C-4 is a compact and reliable electric motor designed for industrial use. This model delivers a rated output of 0.55 kW and operates at a speed of 1395 RPM. It features a shaft diameter of Ø14 mm and conforms to IEC size 71. The motor is built with a TEFC (Totally Enclosed Fan Cooled) cooling system and is made from aluminium for reduced weight and efficient heat dissipation. It supports B14 mounting and complies with the IE2 efficiency standard. The motor has a voltage connection of 230/400V and a 4-pole configuration. It also features an IP55 classification for protection against dust and low-pressure water. The bolt circle diameter (BCD) is 85 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71C-4

Speed (RPM)

1395

Rated output (kW)

0.55

Efficiency (% FL)

77.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.45/1.41

Nominal torque (Nm)

3.77

Start current ratio (IA/IN)

4.9

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor is designed with an IP55 rating, providing protection against dust and water ingress, making it suitable for various industrial environments.
High performance: With a power output of 0.55kW and a speed of 1395RPM, this motor delivers performance.
Versatile voltage: The Busck AC motor supports dual voltage options, operating at 230V or 400V.
B14 flange mounting: Featuring a B14 flange mount, this motor is easily installable and compatible with a variety of equipment and machinery.
High efficiency: The motor is rated as IE2, ensuring high efficiency and energy savings, contributing to reduced operational costs.

Specifications:
