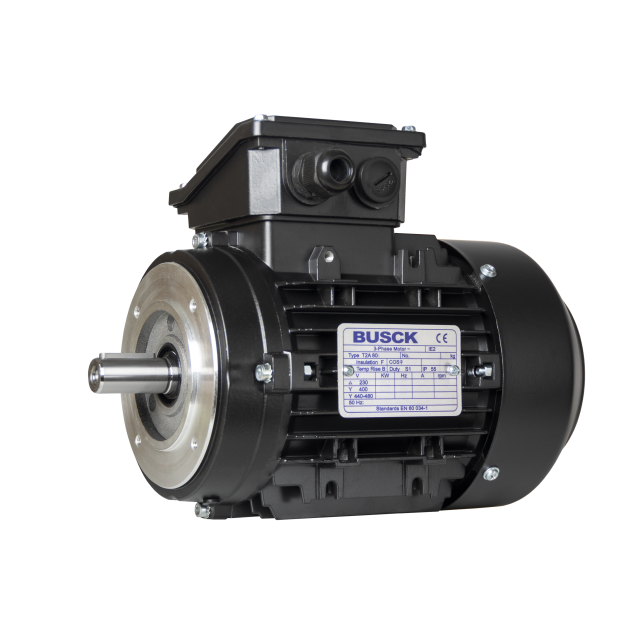

Busck AC motor T2A80A-6, 0,37kW, 935RPM, B14, 230/400, 50 Hz, Aluminium

T2A80A-6

The Busck AC Motor T2A80A-6 is a three-phase asynchronous electric motor designed according to IEC standards. It delivers a rated output of 0.37 kW with a rated speed of 900 RPM and an actual operating speed of 935 RPM. The motor features 6 poles, a B14 flange mounting, and a shaft diameter of Ø19 mm. Built with a durable aluminium frame, it complies with IE2 efficiency standards and has TEFC cooling for reliable operation. Voltage connection is 230/400 V, and the motor adheres to the IEC size 80. The protection level is rated at IP55, and it has a bolt circle diameter (BCD) of 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2A80A-6

Speed (RPM)

935

Rated output (kW)

0.37

Efficiency (% FL)

67.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.09/1.2

Nominal torque (Nm)

3.78

Start current ratio (IA/IN)

3.8

Mounting

B14

BCD

100

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress.
Powerful performance: The motor boasts a power output of 0.37kW.
High speed: Operating at 905RPM.
IE2 efficiency: The motor meets IE2 efficiency standards, promoting energy savings and reducing operating costs.
Voltage options: With a voltage rating of 230/400V, the motor is adaptable to different power supply configurations.
B14 flange: The B14 flange design facilitates easy installation.

Specifications:
