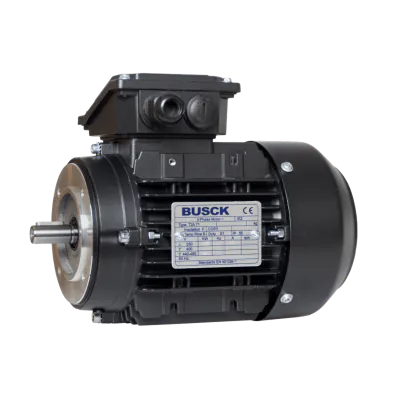

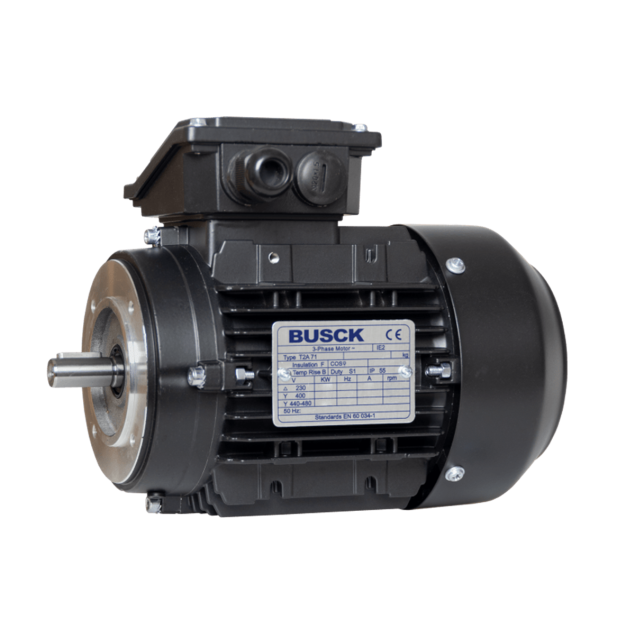

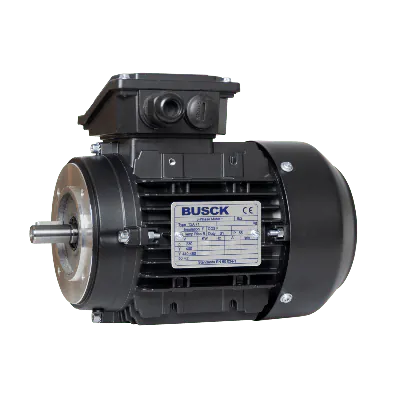

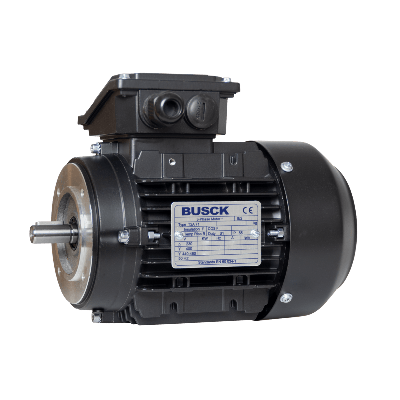

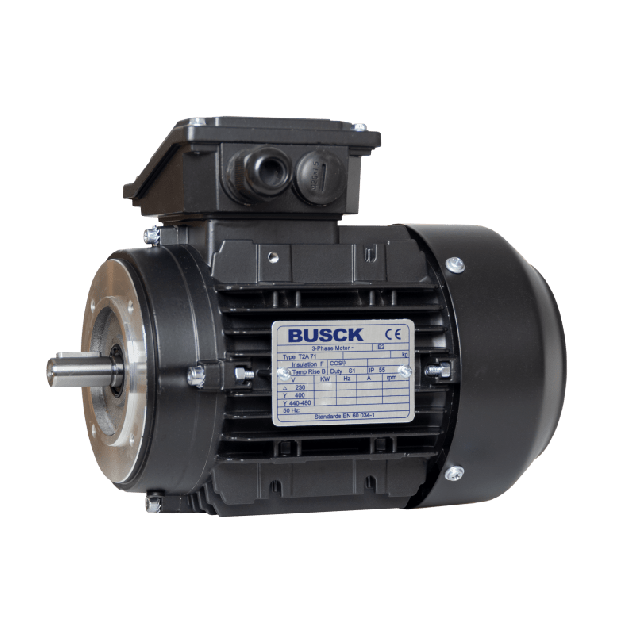

Busck T2A71C-6 AC motor, 0,37kW, 905RPM, B14, 230/400, 50 Hz, Aluminium
T2A71C-6The Busck AC motor T2A71C-6 is engineered for low-speed applications that demand stable torque delivery and quiet operation. Operating at 905 RPM with a 6-pole configuration, this motor achieves a nominal torque of 3.9 Nm, making it ideal for conveyors, mixers, and processing machinery where controlled motion is critical.
Built with a robust aluminium housing, the motor offers excellent heat dissipation and resistance to corrosion. The IP55 protection rating ensures reliable performance in environments exposed to dust and water jets. Classified to IE2 efficiency, it balances energy consumption with dependable industrial performance.
Featuring a B14 flange with 85 mm BCD, the motor integrates easily into compact machine frames. It connects via 230/400V Δ/Y, drawing 2.09/1.2 A, and offers a start current ratio (IA/IN) of 3.7, providing safe, stable start-up characteristics.
A shaft diameter of Ø14 mm enables straightforward coupling to gearboxes or driven shafts. With TEFC (Totally Enclosed Fan Cooled) cooling, the motor maintains optimal temperatures under continuous duty, ensuring long service life even under demanding conditions.
In stock
Expected shipment:
More Information
Description
Key features:
- IP55 rating: With an IP55 rating, this motor is dust-tight and protected against water jets, making it ideal for a wide range of industrial settings.
- High performance: Boasting a power output of 0.37kW and a rotation speed of 900RPM.
- Voltage compatibility: It operates efficiently with both 230V and 400V power supplies.
- IE2 efficiency: This motor is engineered to meet IE2 efficiency standards, ensuring optimal energy utilization and reduced operating costs.
- B14 flange mount: The B14 flange design provides easy installation and compatibility with a variety of equipment and machinery.
Specifications:
- Material: Aluminum
- Temperature Range: -20°C to +40°C
