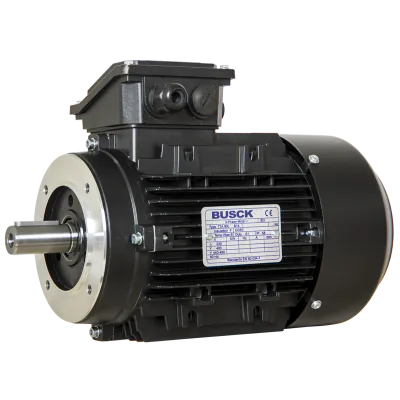

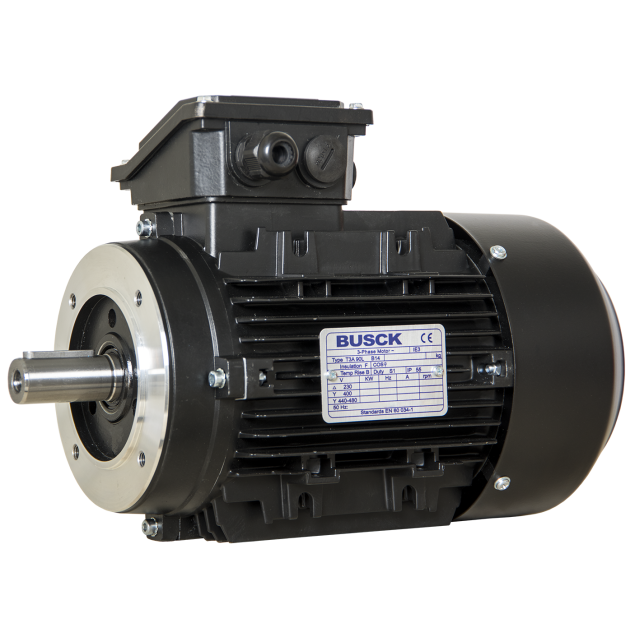

Busck AC motor T2A90S-8, 0,37kW, 710RPM, B14, 230/400, 50 Hz, Aluminium
T2A90S-8The Busck T2A90S-8 is a low-speed IEC-standard AC motor rated at 0.37 kW, delivering 710 RPM with an 8-pole configuration. Housed in lightweight aluminium, this motor is ideal for applications requiring low-speed operation and high torque stability, such as conveyors, mixers, and specialized drive systems.
The motor features Totally Enclosed Fan Cooled (TEFC) construction, IP55 ingress protection, and a B14 flange (Ø115 mm BCD) with a Ø24 mm shaft. It supports IE2 energy efficiency (65.0%), and delivers a starting torque of 1.7 Nm, pull-out torque of 2.2 Nm, and a break-away torque of 1.6 Nm, ensuring smooth and reliable operation in continuous-duty (S1) industrial settings.
Typical applications:
-
Low-speed conveyors
-
Precision mixers
-
Drive systems for timing-based operations
-
Industrial applications with speed-sensitive loads
Made to order
Expected shipment:
More Information
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water, making it suitable for both indoor and outdoor applications.
- High efficiency: Boasting a power output of 0.37kW and an efficiency class of IE2, this motor ensures energy savings.
- Optimal speed: Operating at 710RPM.
- Versatile voltage: The motor is compatible with 230/400V power supplies.
- B14 flange: Designed with a B14 flange.
Specifications:
- Robust construction: The motor is built with aluminum materials.
- Wide temperature range: -20°C to +40°C.
